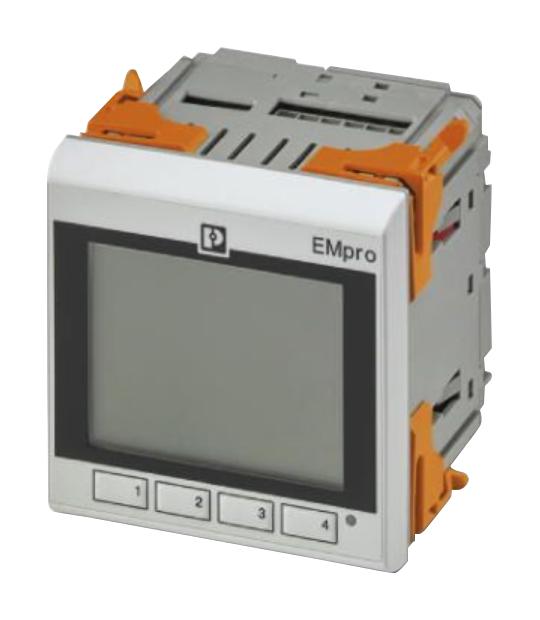

Phoenix Contact 2907953 Energy Meter
The EEM-MA770-EIP is a multifunctional energy measuring device designed for low-voltage electrical installations up to 690 V. It features integrated Modbus/TCP and EtherNet/IP™ interfaces for advanced data communication. Capable of measuring true r.m.s. values, harmonics up to 63rd, and electrical parameters such as voltage and current, this device offers precision of 0.2%. Its LCD display provides clear readings, and it supports various connection methods with screw terminals. Suitable for industrial environments, it operates between -10°C and 55°C with protection rating IP52 and complies with CE standards.
Phoenix Contact 2907953 Energy Meter Specifications:
- Dimensions: Width 96 mm, Height 96 mm, Depth 75 mm
- Operating temperature: -10°C to 55°C; Storage: -40°C to 70°C
- Protection: IP52 (Display), IP20 (Housing)
- Input voltage range: 35 VAC to 690 V AC; 20 VAC to 400 V AC (phase/neutral)
- Surge capacity: 760 V AC (Phase/Phase)
- Input current range: 1 A to 20,000 A (primary)
- Measurement accuracy: 0.2%
- Power supply: 100 V AC to 400 V AC, <4W consumption
- Display: LCD two-color backlit
- Communication: Modbus/TCP, EtherNet/IP™, digital and analog outputs
- Standards: CE compliant, conforms to IEC/EN 61131-2
- Approv als: EAC, RU*DE*08.B.00734/1
- Connection: Screw terminals, 8 mm stripping length, M3 screws, conductor cross section 0.2-6 mm²
Buy the Phoenix Contact 2907953 – Reliable Energy Measurement for Industrial Applications
Purchase the Phoenix Contact 2907953 energy meter online today. This versatile device offers precise electrical parameter measurement, advanced communication interfaces like Modbus/TCP and EtherNet/IP™, LCD display for easy reading, and robust build suitable for industrial environments. Its high accuracy of 0.2%, wide voltage and current ranges, and compliance with CE and IEC standards make it an ideal choice for reliable energy management in low-voltage installations up to 690 V. Get yours today for seamless integration and efficient power monitoring.
Order your Phoenix Contact 2907953 multifunctional energy meter today and ensure precise, reliable power monitoring for your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 2907953?
You can click on the BUY or RFQ button to purchase 2907953 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2907953?
You can download the 2907953 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2907953?
Phoenix Contact
