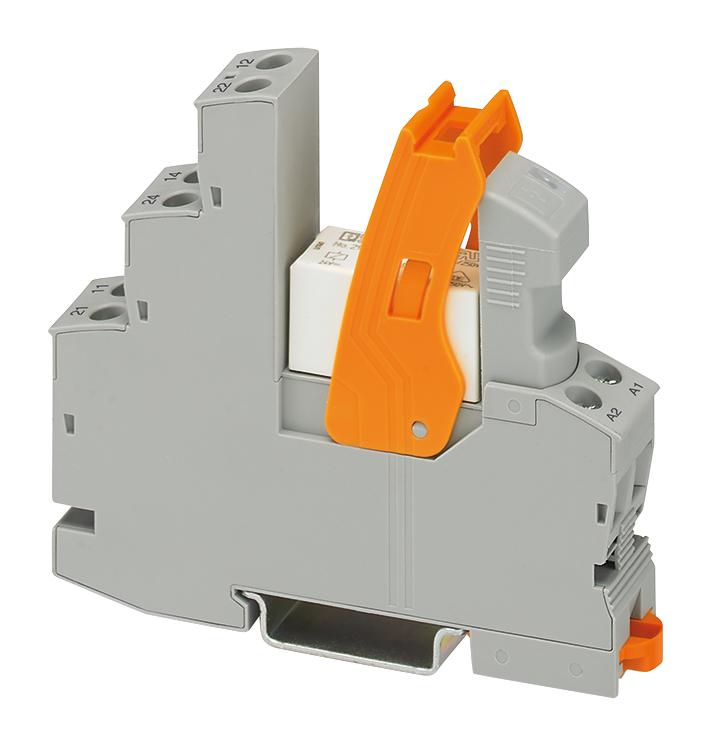

Phoenix Contact 2908501 relay module
This relay module features a compact design with two changeover contacts, suitable for automation and control applications. Operating at 12 V DC with screw connections, it offers a quick response time of 8 ms and response times of 10 ms. The module supports a maximum switching voltage of 250 V AC/DC and a switching current of up to 8 A. Its robust construction ensures reliable operation in ambient temperatures from -40°C to 70°C. With easy mounting options and compliance with industry standards, it is ideal for industrial control systems and automation projects.
Phoenix Contact 2908501 relay module Specifications:
- Voltage: 12 V DC
- Contact type: 2PDT (changeover contacts)
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Maximum switching current: 8 A
- Response time: 8 ms
- Release time: 10 ms
- Typical input current: 33 mA
- Input voltage range: 12 V DC ±20%
- Ambient temperature (operation): -40°C to 70°C
- Dimensions: Width 16 mm, Height 89 mm, Depth 75 mm
- Protection: IP20 (relay base)
- Standards: DIN EN 50178, UL 94 V2 flammability
- Operating mode: 100% duty cycle
- Test voltage relay winding to contact: 4 kV, 50 Hz, 1 min.
- Mechanical life: approx. 30 million cycles
Buy the Buy Phoenix Contact Relay Module Part Number 2908501 Online
Purchase the Phoenix Contact relay module RIF-1-RSC-LDP-12DC/2X21 online today. Designed for industrial automation, it features two changeover contacts, solid construction, and a compact form factor. Easy screw connection, high switching capacity, and robust operation ensure dependable performance in demanding environments. Suitable for control cabinets, automation systems, and industrial machinery. With quick response times and a wide temperature range, this relay module guarantees reliable switching and long service life, making it an essential component for advanced automation projects.
Order your Phoenix Contact relay module RIF-1-RSC-LDP-12DC/2X21 today and ensure reliable switching with high capacity and robust design for industrial controls.
Frequently Asked Questions
Where can I buy Phoenix Contact 2908501?
You can click on the BUY or RFQ button to purchase 2908501 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2908501?
You can download the 2908501 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2908501?
Phoenix Contact
