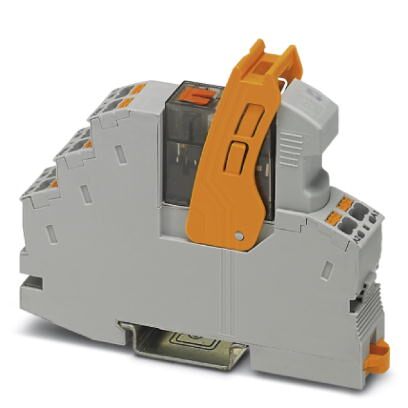

Phoenix Contact 2909776 Relay Module
This pre-assembled relay module offers reliable control with push-in connections, a relay base, retaining bracket, plug-in suppressor, and power contact relay featuring a test button and status LED. Designed for 120 V AC operation, it includes a single-pole double-throw contact, making it suitable for automation and control systems. The module supports various wiring options, with a relay base for easy mounting on NS 35/7,5 and compatibility with miniature power relays. Its robust construction ensures durability in industrial environments, while the LED indicator enhances operational monitoring. Suitable for automation, control panels, and industrial automation projects, it meets stringent safety standards and features UL 94V-0 flammability rating.
Phoenix Contact 2909776 Relay Module Specifications:
- Contact Type: 1 PDT (SPDT)
- Input Voltage: 120 V AC
- Ambient Temperature (Operation): -40°C to 50°C
- Ambient Temperature (Storage/Transport): -40°C to 85°C
- Connection Data Input Side: 0.14 mm² to 1.5 mm² (Ferrule with plastic sleeve)
- Connection Data Output Side: 0.14 mm² to 1.5 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
- Conductor Cross Section: AWG 26 ... 16 (solid)
- Flammability Rating: UL 94V-0
- Standards and Regulations: DNV GL approved, China RoHS compliant
- Dimensions: Compatible with RIF-1 relay base, mounting on NS 35/7.5
Buy the Phoenix Contact Series RIF-1-RPT-LV-120AC/1X21MS: Relay Module
Purchase the Phoenix Contact relay module RIF-1-RPT-LV-120AC/1X21MS online today. This module features push-in connection technology, a robust SPDT relay with 120 V AC input, status LED, test button, and compatibility with a relay base for easy mounting. Ideal for automation and control applications, it offers flexible wiring options, UL 94V-0 flammability rating, and meets industrial safety standards. Ensure dependable operation in your automation projects by ordering this high-quality relay module from our online store now.
Order your Phoenix Contact Series RIF-1-RPT-LV-120AC/1X21MS relay module today and enhance your control systems with reliable, industrial-grade switching performance.
Frequently Asked Questions
Where can I buy Phoenix Contact 2909776?
You can click on the BUY or RFQ button to purchase 2909776 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2909776?
You can download the 2909776 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2909776?
Phoenix Contact
