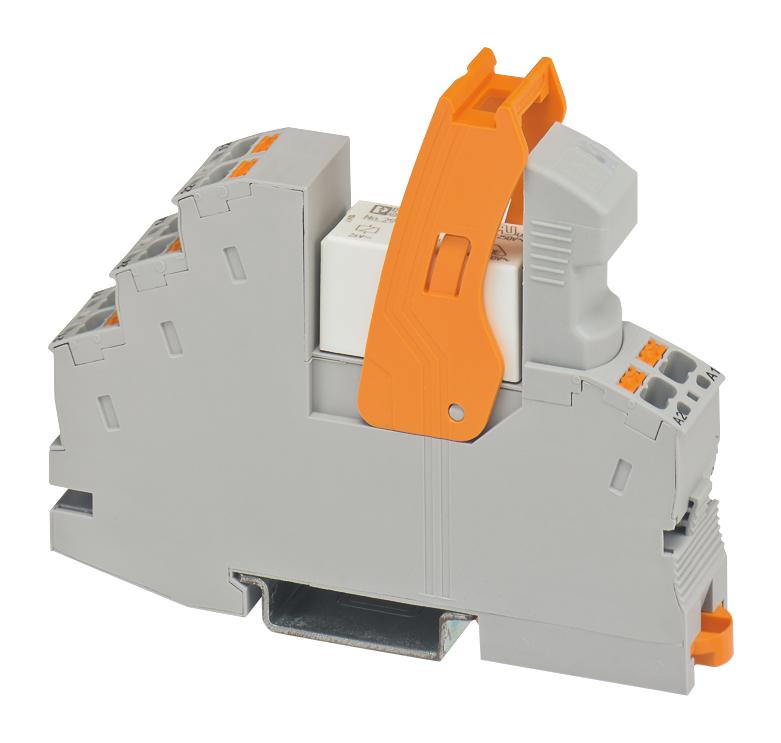

Phoenix Contact 2909884 Industrial Relay Module
This pre-assembled relay module features a push-in connection for easy installation, comprising a relay base, power contact relay, interference suppression module, and retaining bracket. It includes a 1 N/O contact capable of switching peaks up to 130 A, with a nominal input voltage of 24 V DC. Designed for high current switching, it ensures reliable operation with quick response and release times. The module complies with relevant standards, providing reinforced insulation, safe isolation, and suitable environmental ratings for industrial applications. Its compact dimensions and robust construction make it ideal for automation and control systems requiring durable relays.
Phoenix Contact 2909884 Industrial Relay Module Specifications:
- Dimensions: Width 16mm, Height 93mm, Depth 75mm
- Input Voltage: 24 V DC, Range: see diagram
- Input Current: Typical 18 mA
- Response Time: 8 ms, Release Time: 10 ms
- Contact Type: 1 N/O contact, Single contact
- Contact Material: AgSnO
- Maximum Switching Voltage: 250 V AC/DC
- Minimum Switching Voltage: 12 V AC/DC
- Switching Current: Min. 100 mA at 12 V DC, Max. 80 A peak (20 ms)
- Limiting Continuous Current: 6A, 10A if bridged connections
- Interrupting Rating: Up to 240 W at 24 V DC, 1500 VA at 250 V AC
- Protection Class: 1P20, IEC 60664, EN 50178
- Overvoltage Category: im, Surge Voltage: 6kV
- Temperature Range: -40°C to 70°C (operation), -40°C to 85°C (storage/transport)
- Standards: UL 94 V2 flammability, Safe isolation and reinforced insulation
- Environmental: China RoHS compliant
- Mounting: Any position, in rows with zero spacing
- Connection: Push-in, 8 mm stripping length, conductor cross-section: 0.14–1.5 mm² (solid/flexible), AWG 6–16
Buy the Buy Phoenix Contact Relay Module RIF-1-RPT-LDP-24DC/1IC Online
Purchase the Phoenix Contact relay module RIF-1-RPT-LDP-24DC/1IC online today to ensure reliable high current switching for your automation system. Designed for durability, it features a push-in connection for quick installation, a 1 N/O contact capable of handling peaks up to 130 A, and a 24 V DC input voltage for versatile usage. Ideal for industrial controls, its compact size fits seamlessly into automation setups. Benefit from quick response times and robust construction that guarantees long-term operational stability and safety. Buy now for dependable performance in demanding environments.
Get Phoenix Contact RIF-1-RPT-LDP-24DC/1IC today—built for high current switching and industrial reliability.
