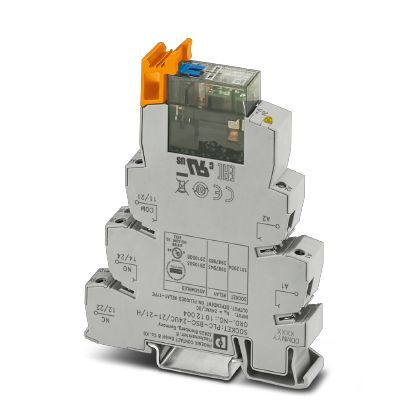

Phoenix Contact 2910508 Industrial Relay Module
This is a PLC interface module that includes a relay base and a pluggable multilayer gold contact relay with manual operation. It features an integrated status LED for easy monitoring, screw terminal connections for secure wiring, and a double-pole double-throw (DPDT) contact configuration. The input voltage required is 24 V AC/DC.
Phoenix Contact 2910508 Industrial Relay Module Specifications:
- Dimensions: Standard profile, width 35 mm, height 7.5 mm
- Input Voltage: 24 V AC/DC
- Coil Voltage: 24V DC
- Contact Configuration: DPDT
- Number of Contacts: 8
- Connection Type: Screw connection
- Ambient Temperature (Operation): -20°C to 60°C
- Ambient Temperature (Storage/Transport): -20°C to 85°C
- Certifications: UL Recognized, UL Listed, cUL Recognized, cUL Listed
- Material: Steel, stainless steel V2A, copper, aluminum options
- Environmental Compliance: China RoHS, Environmentally Friendly Use Period 50
- Protection Circuit: Bridge rectifier
- Connection Data: Solid and flexible wire cross section 0.14 mm² ... 2.5 mm², AWG 26 ... 14
Buy the Phoenix Contact PLC-RSC- 24UC/21-21AU/MS – Reliable Industrial Relay for Automation
Enhance your automation setup with the reliable Phoenix Contact PLC relay module. Featuring high-quality gold contact relays, manual operation, status LED, and screw terminal connections, this module offers exceptional durability and precision. Suitable for various industrial applications, it ensures secure wiring and excellent performance at a 24 V AC/DC input voltage. Its robust construction and compliance with international safety standards make it an essential component for modern automation systems. Buy online now to improve operational reliability and efficiency.
Get Phoenix Contact PLC-RSC- 24UC/21-21AU/MS today—built for precision and long-lasting durability in industrial environments.
