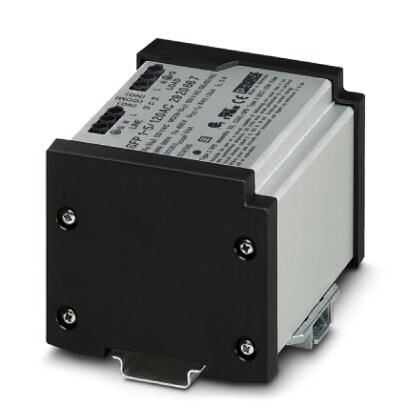

Phoenix Contact 2920667 Surge Protection Device
This device provides protection according to Type 3/Class III standards, featuring a network interference suppression filter to prevent high-frequency interference voltages. It is suitable for 1-phase power supply networks with separate neutral (N) and protective earth (PE) conductors, arranged in a 3-conductor system (L1 - N - PE). The device also includes a remote indication contact for monitoring purposes.
Phoenix Contact 2920667 Surge Protection Device Specifications:
- Degree of protection: IP20
- Ambient temperature (operation): -25 °C to 70 °C
- Ambient temperature (storage/transport): -25 °C to 70 °C
- Permissible humidity: 5% to 95%
- Connection method: Screw terminal blocks
- Conductor cross section: AWG 14 to 10
- Tightening torque: 0.5 Nm to 0.6 Nm
- Discharge resistance: 820 kΩ
- Approvals: UL Recognized, cUL Recognized, CSA, EAC, CSAus
- Environmental compliance: REACh SVHC Lead 7439-92-1, China RoHS
- Dimensions: Not specified explicitly, suitable for industrial mounting
- Electrical specifications: Suitable for 1-phase systems with L1, N, PE conductors
- Filter type: Network interference suppression, Type 3/Class III
- Protection feature: Transient surge voltage absorption, high-frequency interference filtering
- Remote indication: Floating contact for disconnection status
Buy the Phoenix Contact 2920667 – Reliable Surge Protection for Industrial Applications
Purchase the Phoenix Contact surge protection device online today and ensure maximum protection for your industrial power networks. Designed with high-frequency interference filters, it effectively absorbs transient surge voltages and prevents high-frequency interference. Its robust construction meets Type 3/Class III standards, suitable for 1-phase systems with separate neutral and earth conductors. Featuring remote indication contact, it allows easy monitoring of disconnection status, ensuring reliable operation. Install this device for durable, high-performance surge and noise protection tailored for industrial environments.
Get Phoenix Contact 2920667 today—built for precision and reliable surge and interference protection in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 2920667?
You can click on the BUY or RFQ button to purchase 2920667 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2920667?
You can download the 2920667 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2920667?
Phoenix Contact
