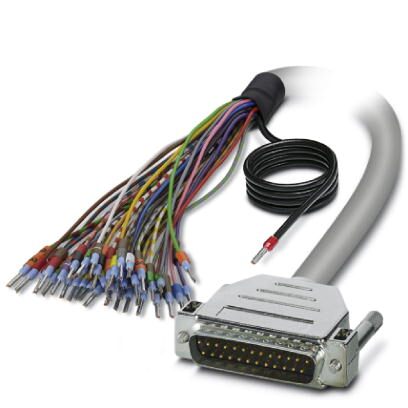

Phoenix Contact 2926519 Shielded Round Cable
The Phoenix Contact 2926519 is a shielded round cable designed for robust and reliable data transmission in industrial environments. It combines a 25-position D-SUB connector with a round cable assembly, offering a secure and organized connection. Key features include individual wire marking and ferrules for easy identification, a braided shield for signal integrity, and a semi-rigid PVC outer sheath for durability. This cable is suitable for applications requiring a 1-meter length and is designed to withstand demanding conditions, making it a versatile solution for connecting field-level devices to controllers.
Phoenix Contact 2926519 Shielded Round Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4046356547017
- Weight per Piece (excluding packing): 180.000 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 70 °C (fixed installation), -10 °C ... 70 °C (flexible installation)
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Maximum altitude: ≤ 2000 m
- Degree of protection: IP20, ≥ IP54 (Installation location)
- Max. permissible operating voltage: 25 V AC, 60 V DC
- Max. current carrying capacity per path: 2 A (50 °C), 1 A (70°C)
- Length of cable: 1 m
- External cable diameter: 9.8 mm ±0.5 mm
- Single wire, cross section: 0.25 mm²
- Single wire, cross section [AWG]: 24
- Single wire, number of litz wires: 14
- Single wire, material: Cu uninsulated
- Wire diameter incl. insulation: 1.2 mm ±0.05 mm
- Smallest bending radius, fixed installation: 82 mm
- Smallest bending radius, movable installation: 155 mm
- Bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
- Shielding: yes, Tinned copper-braided shield, approx. 85% covering
- Cable insulation resistance: ≥ 20 MΩ/km (at 20 °C)
- Cable resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath, material: Semi-rigid PVC
- External sheath, color: gray
- Nominal operating mode: 100% operating factor
- Connection name: Field level, Controller level
- Connection method: D-SUB pin strip, Single wires
- Number of connections: 1
- Number of positions: 25
- Torque: 0.2 Nm
- Insertion/withdrawal cycles: > 200
- Flame resistance: UL VW-1, CSA FT-1, IEC 60332-1-2, VDE 0842, Part 332-1-2, IEC 60332-3-22
- Resistance to oil: against occasional splashes
- Gasoline resistance: against occasional splashes
- Connection in acc. with standard: CUL
- Designation: Air clearances and creepage distances
- Standards/regulations: DIN EN 50178
- Rated insulation voltage: 125 V
- Rated surge voltage: 1.2 kV
- Insulation: Functional insulation
- Degree of pollution: 2
- Overvoltage category: II
- China RoHS: Environmentally Friendly Use Period = 50
