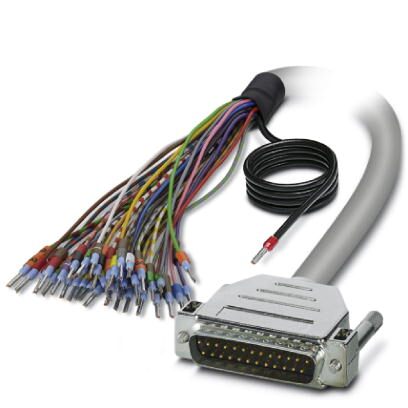

Phoenix Contact 2926535 25 SUB D Cable Assembly
The Phoenix Contact 2926535 cable assembly is a robust solution for connecting devices in industrial environments. It combines a shielded round cable with a 25-position D-SUB pin strip connector, providing reliable signal transmission. The cable's construction includes individual wire marking and ferrules, simplifying identification and maintenance. Designed for applications requiring a 2-meter cable length, this assembly is suitable for connecting field-level devices to controllers, ensuring efficient data transfer and control signal routing. Its robust design and shielding minimize interference, guaranteeing consistent performance in demanding industrial settings.
Phoenix Contact 2926535 25 SUB D Cable Assembly Specifications:
- Packing unit: 1 pc
- GTIN: 4046356547024
- Weight per Piece (excluding packing): 320.000 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 70 °C (fixed installation), -10 °C ... 70 °C (flexible installation)
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Maximum altitude: ≤ 2000 m
- Degree of protection: IP20, ≥ IP54
- Max. permissible operating voltage: 25 V AC, 60 V DC
- Max. current carrying capacity per path: 2 A (50 °C), 1 A (70°C)
- Length of cable: 2 m
- External cable diameter: 9.8 mm ±0.5 mm
- Single wire, cross section: 0.25 mm²
- Single wire, cross section [AWG]: 24
- Single wire, number of litz wires: 14
- Single wire, material: Cu uninsulated
- Wire diameter incl. insulation: 1.2 mm ±0.05 mm
- Smallest bending radius, fixed installation: 82 mm
- Smallest bending radius, movable installation: 155 mm
- Bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
- Shielding: yes, Tinned copper-braided shield, approx. 85% covering
- Cable insulation resistance: ≥ 20 MΩ/km (at 20 °C)
- Cable resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath, material: Semi-rigid PVC
- External sheath, color: gray
- Nominal operating mode: 100% operating factor
- Connection method: D-SUB pin strip, Single wires
- Number of connections: 1
- Number of positions: 25
- Torque: 0.2 Nm
- Insertion/withdrawal cycles: > 200
- Flame resistance: UL VW-1, CSA FT-1, IEC 60332-1-2, VDE 0842, Part 332-1-2, IEC 60332-3-22
- Resistance to oil: against occasional splashes
- Gasoline resistance: against occasional splashes
- Connection in acc. with standard: CUL
- Designation: Air clearances and creepage distances
- Standards/regulations: DIN EN 50178
- Rated insulation voltage: 125 V
- Rated surge voltage: 1.2 kV
- Insulation: Functional insulation
- Degree of pollution: 2
- Overvoltage category: II
