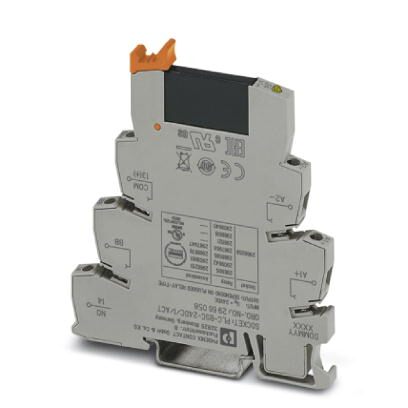

Phoenix Contact 2967947 Solid-State Relay Module
The Phoenix Contact PLC-OSC-24DC/230AC/1/ACT (part number 2967947) is a solid-state relay module ideal for integration into PLC systems. This module combines a PLC-BSC basic terminal block and a miniature solid-state relay, offering a compact and efficient solution for output functions. It provides safe isolation between coil and contact according to DIN EN 50178, contributing to system safety and reliability. The module's direct actuator connection and efficient wiring using a V8 adapter significantly reduce installation time and space requirements, making it suitable for a wide range of industrial automation and control applications. It operates with a 24V DC input and delivers an output voltage of 24-253V AC at a maximum current of 0.75A.
Phoenix Contact 2967947 Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 38.0 g
- Custom tariff number: 85364190
- Country of origin: Germany
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.25
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 9 mA
- Typical response time: 3 ms (at UN)
- Typical turn-off time: 9 ms (at UN)
- Operating voltage display: Yellow LED
- Type of protection: Protection against polarity reversal
- Protective circuit/component: Polarity protection diode
- Transmission frequency: 10 Hz
- Output voltage range: 24 V AC ... 253 V AC
- Limiting continuous current: 0.75 A (see derating curve)
- Maximum inrush current: 30 A (10 ms)
- Min. load current: 10 mA
- Leakage current: < 1 mA (in off state)
- Max. load value: 4.5 A, 2s
- Voltage drop at max. limiting continuous current: < 1 V
- Output circuit: 2-wire, floating
- Connection name (input side): Input side
- Connection method (input side): Screw connection
- Stripping length (input side): 8 mm
- Screw thread (input side): M3
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- AWG conductor cross section (input side): 26 ... 14
- Connection name (output side): Output side
- Connection method (output side): Screw connection
- Stripping length (output side): 8 mm
- Screw thread (output side): M3
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- AWG conductor cross section (output side): 26 ... 14
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Standards/regulations: IEC 60664, EN 50178, IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
