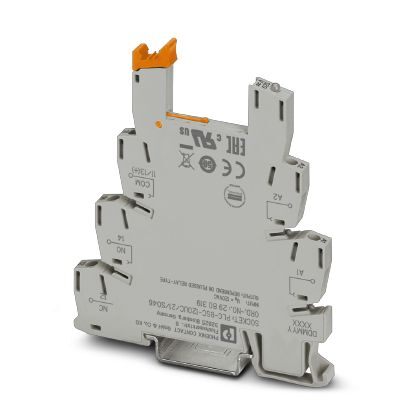

Phoenix Contact 2980319 PLC Relay Base Socket
The PHOENIX CONTACT PLC-BSC-120UC/21/SO46 relay base is a versatile solution for industrial automation and control systems. It offers interference current and voltage protection, ensuring reliable operation in electrically noisy environments. Designed for mounting on DIN rail NS 35/7.5, this base accommodates miniature relays and optocouplers, providing flexibility in system design. Its robust construction and integrated RCZ filter contribute to enhanced performance and longevity in demanding industrial applications.
Phoenix Contact 2980319 PLC Relay Base Socket Specifications:
- Packing unit: 1 pc
- GTIN: 4017918895709
- Weight per Piece (excluding packing): 37.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Ambient temperature (operation): -40 °C ... 55 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Input voltage range in reference to UN: 0.8 ... 1.4
- Typical release voltage: 50 V AC
- Nominal input voltage UN: 120 V AC
- Status display: LED
- Protective circuit: Bridge rectifier
- Compatible components: Miniature relay, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1
- Color: gray
- Operating mode: 100% operating factor
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection method (Input side): Screw connection
- Stripping length (Input side): 8 mm
- Screw thread (Input side): M3
- Conductor cross section solid (Input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (Input side): 26 ... 14
- Connection method (Output side): Screw connection
- Stripping length (Output side): 8 mm
- Screw thread (Output side): M3
- Conductor cross section solid (Output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Output side): 0.14 mm² ... 2.5 mm²
- Connection in acc. with standard: CUL
- China RoHS: Environmentally Friendly Use Period = 50
Buy the 2980319 PHOENIX CONTACT PLC Relay Base Socket | myMectronic
Purchase the PHOENIX CONTACT 2980319 PLC Relay Base Socket securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 2980319?
You can click on the BUY or RFQ button to purchase 2980319 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2980319?
You can download the 2980319 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2980319?
Phoenix Contact
