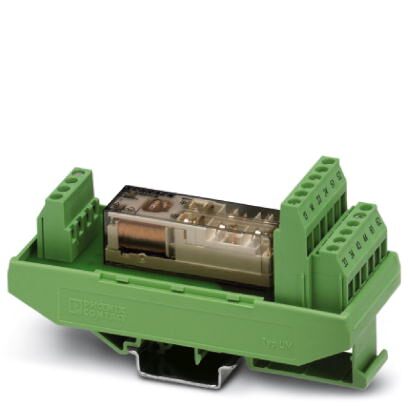

Phoenix Contact 2981444 Safety Relay Module
The Phoenix Universal Safety PSR-SCF-24UC/URM/4X1/2X is a reliable safety relay module designed for industrial applications. It provides safety functions with multiple contact outputs and unified control, ensuring safe operation of machinery and equipment. The relay features force-guided contacts, configured with 4 normally open contacts and 2 normally closed contacts, and is suitable for safety standards such as EN ISO 13849-1 and IEC 61508. It has a compact width of 40 mm, operates at an ambient temperature of -20°C to 55°C, and is compliant with multiple safety and environmental certifications, making it ideal for safeguarding control systems.
Phoenix Contact 2981444 Safety Relay Module Specifications:
- Dimensions: Width: 40 mm
- Contact Type: 4 N/O, 2 N/C, force-guided contacts
- Electrical Rating: 5 A (24 V DC13)
- Ambient Temperature (Operation): -20°C to 55°C
- Ambient Temperature (Storage/Transport): -40°C to 85°C
- Max. Humidity (Operation): 75% (on average 85%), non-condensing
- Max. Humidity (Storage/Transport): 75% (on average 85%), non-condensing
- Max. Altitude: < 2000 m
- Rated Insulation Voltage: 250 V
- Shock Resistance: 15g, duration 2 ms
- Vibration Resistance: 2g, 10Hz to 150Hz
- Standards and Regulations: DIN EN 50178, UL Listed, cUL Listed, EAC
- Safety-related Characteristics: SIL CL 1, PL c, EN ISO 13849-1, IEC 62061
Buy the Phoenix 2981444 – Reliable Safety Relay for Industrial Applications
Activate your safety system with the Phoenix 2981444 safety relay module, engineered for reliability and compliance with international standards. Its force-guided contacts and safety features ensure secure operation of machinery, reducing risk and enhancing safety. Designed for easy installation in control panels, it supports multiple safety standards like EN ISO 13849-1 and IEC 61508, making it ideal for industrial safety applications. Buy online now to improve your system’s safety with a trusted, robust safety relay built to last in critical control environments.
Get Phoenix 2981444 today—built for precision, safety, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 2981444?
You can click on the BUY or RFQ button to purchase 2981444 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2981444?
You can download the 2981444 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2981444?
Phoenix Contact
