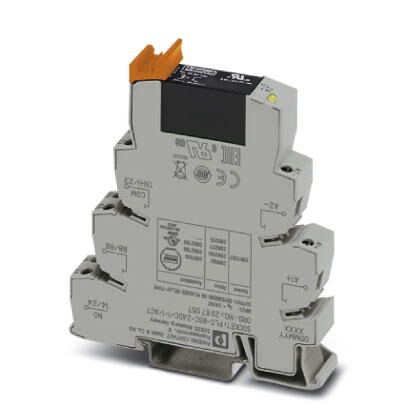

Phoenix Contact 2982786 Solid-state relay module
This PLC interface module is designed for output functions and includes a basic terminal block with screw connection, compatible with the PLC-BSC.../ACT series. It features a plug-in miniature solid-state relay for convenient mounting on DIN rail NS 35/7.5. The module has one normally open (N/O) contact, operates with a 24 V DC input, and provides an output voltage range of 3 to 33 V DC with a maximum current of 5 A. Suitable for industrial automation, control, and switching applications.
Phoenix Contact 2982786 Solid-state relay module Specifications:
- Ambient temperature (operation): -20 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Input voltage: 24 V DC
- Output voltage range: 3 to 33 V DC
- Maximum load current: 5 A
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting: DIN rail NS 35/7.5
- Connection: Screw connection
- Enclosure: Plug-in miniature solid-state relay
- Contact: 1 N/O
- Standards: UL Recognized, UL Listed, cUL Recognized, cUL Listed
- Environmental compliance: REACh SVHC Lead 7439-92-1, China RoHS
Buy the Phoenix Contact PLC-OSC- 24DC/ 24DC/ 5/ACT Reliable Control Interface for Industrial Applications
Purchase the Phoenix Contact PLC-OSC- 24DC/ 24DC/ 5/ACT online today to ensure reliable control and switching in your automation systems. This robust relay module offers a 24 V DC input, supports a load current of up to 5 A, and is mounted easily on standard DIN rails NS 35/7.5. Its slim and compact design makes it ideal for space-constrained control cabinets, providing safe, dependable operation with industry-standard certifications. Improve your process control with this high-quality interface module available now for quick online order.
Order your Phoenix Contact PLC-OSC- 24DC/ 24DC/ 5/ACT today and enhance your automation projects with a dependable solid-state relay module designed for industrial use.
