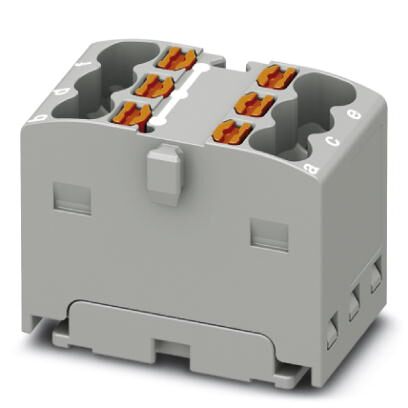

Phoenix Contact 3002757 Distribution Block, 6 Connections
The PHOENIX CONTACT PTFIX 6X1,5 GY distribution block is designed for efficient and organized power distribution in industrial settings. Its compact design saves space, while direct mounting with flange covers provides flexibility. The block features convenient test openings at each terminal point for easy troubleshooting and maintenance. It's ideal for applications requiring a reliable and space-saving solution for potential distribution, offering a clear arrangement thanks to marking of all terminal points. The block is internally jumpered and suitable for a wide range of applications.
Phoenix Contact 3002757 Distribution Block, 6 Connections Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 20 STK
- GTIN: 4055626432403
- Weight per Piece (excluding packing): 6.000 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Number of levels: 1
- Number of connections: 6
- Note: The blocks can be bridged with one another via the conductor shaft.
- Potentials: 1
- Nominal cross section: 1.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Ambient temperature (operation): -60 °C ... 130 °C
- Maximum load current: 17.5 A
- Nominal current IN: 17.5 A
- Nominal voltage UN: 450 V
- Open side panel: No
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Finger protection: guaranteed
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 12.6 mm
- Length: 21 mm
- Height: 17.6 mm
- Connection method: Push-in connection
- Connection in acc. with standard: IEC 60998-2-2
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 16
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 16
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 1.5 mm²
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A1 / B1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
