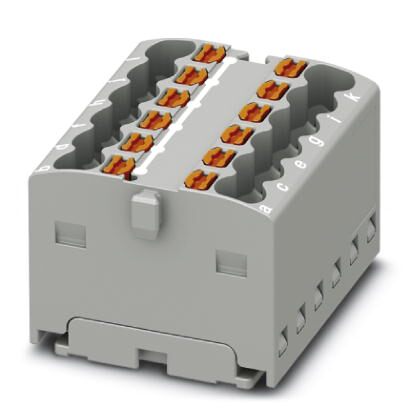

Phoenix Contact 3002758 Distribution Block
The PHOENIX CONTACT PTFIX 12X1,5 GY distribution block offers a compact and efficient solution for potential distribution in various industrial applications. Its internally jumpered design simplifies wiring, while the push-in connection ensures secure and reliable connections. The block's compact size saves valuable space, and the direct mounting capability with flange covers allows for flexible installation options. Test openings at each terminal point provide convenient access for testing and troubleshooting, and clear terminal markings enhance organization and reduce errors. This distribution block is ideal for applications requiring reliable and space-efficient power distribution.
Phoenix Contact 3002758 Distribution Block Specifications:
- Note: The blocks can be bridged with one another via the conductor shaft. For corresponding plug-in bridges, see accessories
- Number of levels: 1
- Number of connections: 12
- Potentials: 1
- Nominal cross section: 1.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Ambient temperature (operation): -60 °C ... 130 °C
- Maximum load current: 17.5 A
- Nominal current IN: 17.5 A
- Nominal voltage UN: 450 V
- Open side panel: No
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Back of the hand protection: guaranteed
- Finger protection: guaranteed
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 25.2 mm
- Length: 21 mm
- Height: 17.6 mm
- Connection method: Push-in connection
- Connection in acc. with standard: IEC 60998-2-2
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 16
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 16
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 1.5 mm²
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A1 / B1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- RoHS: No hazardous substances above threshold values
