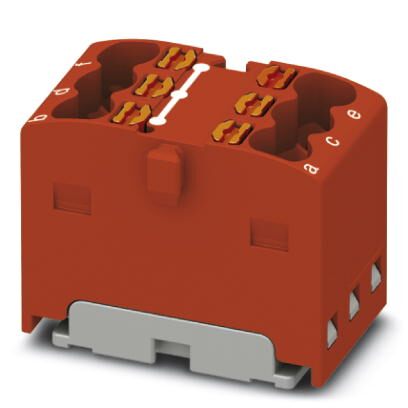

Phoenix Contact 3002765 Distribution Block
The PHOENIX CONTACT PTFIX 6X1,5 RD (3002765) is a robust distribution block designed for efficient and organized power distribution in various industrial applications. Its internally jumpered design simplifies wiring and reduces installation time. The compact form factor saves valuable space, while the direct mounting capability with flange covers provides flexibility in installation. The block offers a nominal voltage of 450V and a nominal current of 17.5A, suitable for a wide range of power distribution needs. Features like test openings at each terminal point and clear marking enhance usability and maintenance. It is constructed with durable materials and meets stringent safety standards, ensuring reliable performance in demanding environments.
Phoenix Contact 3002765 Distribution Block Specifications:
- Number of connections: 6
- Cross section: 0.14 mm² - 1.5 mm²
- AWG: 26 - 16
- Width: 12.6 mm
- Height: 17.6 mm
- Color: red
- Mounting type: Direct mounting with flange
- Nominal voltage: 450 V
- Nominal current: 17.5 A
- Connection method: Pushin connection
- Number of levels: 1
- Potentials: 1
- Nominal cross section: 1.5 mm²
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Ambient temperature (operation): -60 °C ... 130 °C
- Maximum load current: 17.5 A
- Open side panel: No
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A1 / B1
- Connection in acc. with standard: IEC 60998-2-2
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 1.5 mm²
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Packing unit: 1 STK
- Minimum order quantity: 20 STK
- GTIN: 4055626432465
- Weight per Piece (excluding packing): 5.000 g
- Custom tariff number: 85369010
- Country of origin: Poland
