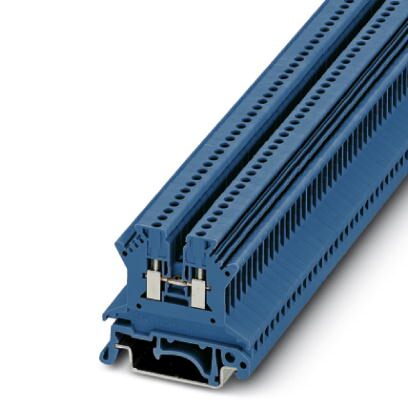

Phoenix Contact 3005840 Feed-through Terminal Block

Phoenix Contact 3005840 Feed-through Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 1.5 mm²
• Color: blue
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.56 W
• Maximum load current: 17.5 A
• Nominal current IN: 17.5 A
• Nominal voltage UN: 500 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section: 0.14 mm² / 0.2 kg, 1.5 mm² / 0.4 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 0.14 mm² / 40 N, 1.5 mm² / 40 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 32/NS 35
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 1.5 mm²
• Short-time current: 0.18 kA
• Result of thermal test: Test passed
• Relative insulation material temperature index: 130 °C
• Temperature index of insulation material: 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles: Test passed
• Oxygen index: >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130: passed
• Specific optical density of smoke NFPA 130: passed
• Smoke gas toxicity NFPA 130: passed
• Calorimetric heat release NFPA 130: 28 MJ/kg
• Fire protection for rail vehicles: HL 1 - HL 3
• Width: 4.2 mm
• End cover width: 1.5 mm
• Length: 42.5 mm
• Height NS 35/7,5: 42 mm
• Height NS 35/15: 49.5 mm
• Height NS 32: 47 mm
• Connection method: Screw connection
• Screw thread: M2
• Stripping length: 7 mm
• Tightening torque, min: 0.22 Nm
• Tightening torque max: 0.25 Nm
• Conductor cross section solid min: 0.14 mm²
• Conductor cross section solid max: 1.5 mm²
• Conductor cross section AWG min: 26
• Conductor cross section AWG max: 16
• Conductor cross section flexible min: 0.14 mm²
• Conductor cross section flexible max: 1.5 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max: 0.75 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max: 0.75 mm²
• 2 conductors with same cross section, solid min: 0.14 mm²
• 2 conductors with same cross section, solid max: 0.75 mm²
• 2 conductors with same cross section, stranded min: 0.14 mm²
• 2 conductors with same cross section, stranded max: 0.75 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max: 0.5 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve min: 0.25 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve max: 0.34 mm²
