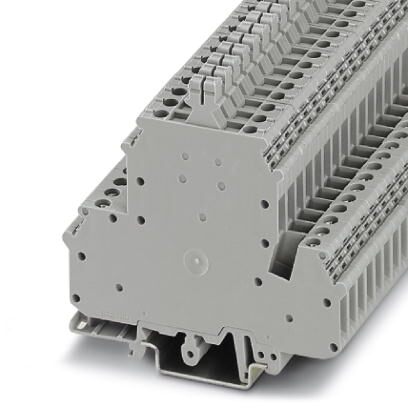

Phoenix Contact 3007055 Disconnect Terminal Block
The Phoenix Contact UKK 5-T disconnect terminal block is a versatile solution for power distribution in industrial environments. Designed with a disconnect mechanism, it allows for easy maintenance and replacement of conductors without interrupting the entire circuit. The terminal block supports a wide range of conductor sizes, from 0.2 mm² to 4 mm², and is rated for a nominal current of 26 A and a nominal voltage of 400 V. Its robust construction and compliance with standards like IEC 60947-7-1 ensure reliable performance in demanding applications. Ideal for control cabinets, machinery, and other industrial equipment.
Phoenix Contact 3007055 Disconnect Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Color: gray
- Insulating material: PA
- Inflammability class according to UL 94: V2
- Maximum load current: 26 A (with 4 mm² conductor cross section)
- Rated surge voltage: 6 kV
- Pollution degree: 3
- Surge voltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 26 A
- Nominal voltage UN: 400 V
- Open side panel: nein
- Width: 6.2 mm
- Length: 80 mm
- Height NS 35/7,5: 68.5 mm
- Height NS 35/15: 76 mm
- Height NS 32: 73.5 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section stranded min.: 0.2 mm²
- Conductor cross section stranded max.: 4 mm²
- Conductor cross section AWG/kcmil min.: 24
- Conductor cross section AWG/kcmil max: 12
- Conductor cross section stranded, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section stranded, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section stranded, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section stranded, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- Cross section with insertion bridge, solid max.: 4 mm²
- Cross section with insertion bridge, stranded max.: 4 mm²
- Connection method: Screw connection
- Stripping length: 8 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 25.22 GRM
- Custom tariff number: 85369010
- Country of origin: Turkey
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141118
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141126
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000902
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
- CSA mm²/AWG/kcmil: 28-12
- CSA Nominal current IN: 15 A
- CSA Nominal voltage UN: 300 V
- UL Recognized mm²/AWG/kcmil: 26-12
- UL Recognized Nominal current IN: 15 A
- UL Recognized Nominal voltage UN: 300 V
- cUL Recognized mm²/AWG/kcmil: 26-12
- cUL Recognized Nominal current IN: 15 A
- cUL Recognized Nominal voltage UN: 300 V
