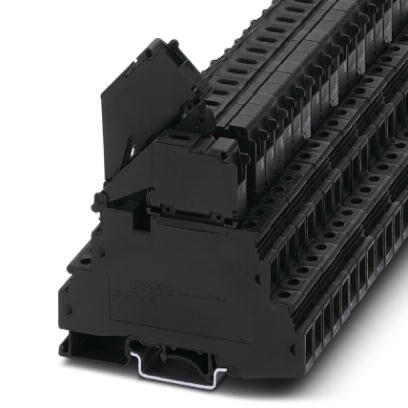

Phoenix Contact 3007204 Fuse Modular Terminal Block
The PHOENIX CONTACT UKK 5-HESI fuse modular terminal block is a versatile component designed for secure and reliable power distribution in industrial applications. This terminal block offers a compact double-level fuse design, allowing for overcurrent protection and circuit isolation. It utilizes a screw connection mechanism, accommodating conductors ranging from 0.2 to 4 mm² (AWG 24-12). The terminal block is compatible with standard fuse sizes (G/5x20) and is designed for mounting on NS 35/7.5, NS 35/15, and NS 32 rails. Its robust construction and high-quality materials ensure durability and long-term performance in demanding environments. It is ideal for applications requiring overcurrent protection and reliable connectivity.
Phoenix Contact 3007204 Fuse Modular Terminal Block Specifications:
- Number of positions: 1
- Connection method: Screw connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Nominal current: 32 A
- Nominal voltage: 400 V
- Width: 8.2 mm
- Fuse type: G / 5 x 20
- Mounting type: NS 35/7,5, NS 35/15, NS 32
- Flammability rating according to UL 94: V0
- Overvoltage category: III
- Maximum load current (lower level): 32 A
- Maximum load current (upper level): 6.3 A
- Stripping length: 8 mm
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.8 Nm
