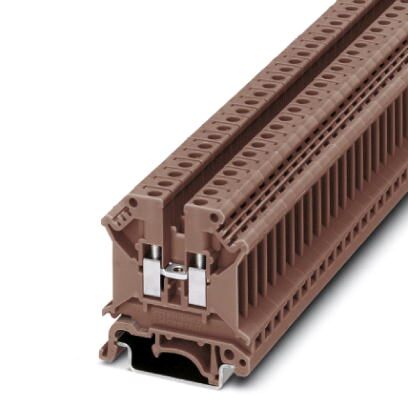

Phoenix Contact 3007330 Feed-through Terminal Block
The Phoenix Contact UK 5 N BN feed-through terminal block is a versatile solution for connecting wires in electrical panels and control systems. It features a screw connection mechanism, ensuring a secure and durable connection for conductors with a cross-section between 0.2 mm² and 6 mm². Designed for use with NS 35 mounting rails, this terminal block is suitable for a wide range of industrial applications, including power distribution, automation, and control systems. Its robust construction and high-quality materials ensure reliable performance even in demanding environments. The terminal block supports a nominal current of 32A and a nominal voltage of 800V, making it suitable for various voltage levels.
Phoenix Contact 3007330 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: brown
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 41 A (with 6 mm² conductor cross section)
- Nominal current IN: 32 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Width: 6.2 mm
- End cover width: 1.8 mm
- Length: 42.5 mm
- Height NS 35/7,5: 47 mm
- Height NS 35/15: 54.5 mm
- Height NS 32: 52 mm
- Connection method: Screw connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Cross section with insertion bridge, solid max.: 4 mm²
- Cross section with insertion bridge, stranded max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- Stripping length: 8 mm
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 8.4 g
- Custom tariff number: 85369010
- Country of origin: Germany
- eCl@ss 4.0: 27141120
- eCl@ss 4.1: 27141120
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
