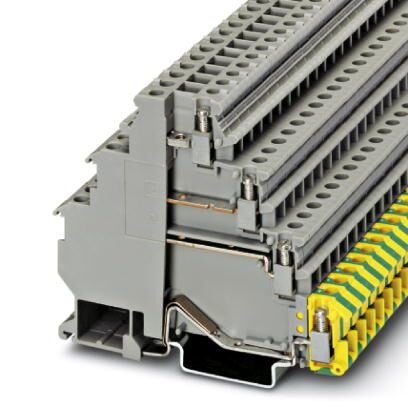

Phoenix Contact 3011038 Multi-Level Terminal Block
The Phoenix Contact DLKB 2,5-PE is a multi-level terminal block engineered for demanding industrial environments. Its four-level design, combined with a PE connection, makes it ideal for wiring three-phase loads and distributing power efficiently. The ability to bridge the middle and lower levels using EB insertion bridges simplifies wiring and reduces installation time. Constructed from durable PA material and rated for high voltage and current, the DLKB 2,5-PE ensures reliable performance in a wide range of applications, including motor control centers, power distribution panels, and automation systems. Its robust construction and secure screw connection provide long-lasting connections and minimize maintenance requirements.
Phoenix Contact 3011038 Multi-Level Terminal Block Specifications:
- Number of levels: 4
- Number of connections: 7
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1 / IEC 60947-7-2
- Nominal current IN: 19 A
- Maximum load current: 24 A (with 4 mm² conductor cross section)
- Nominal voltage UN: 400 V (when using EB insertion bridges, the nominal voltage is reduced to 250 V.)
- Open side panel: No
- Width: 6.2 mm
- Length: 83.5 mm
- Height NS 35/7,5: 70 mm
- Height NS 35/15: 77.5 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Cross section with insertion bridge, solid max.: 4 mm²
- Cross section with insertion bridge, stranded max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Stripping length: 8 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141118
- eCl@ss 6.0: 27141125
- eCl@ss 7.0: 27141125
- eCl@ss 8.0: 27141141
- eCl@ss 9.0: 27141141
- ETIM 2.0: EC001329
- ETIM 3.0: EC001329
- ETIM 4.0: EC001329
- ETIM 5.0: EC000901
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
