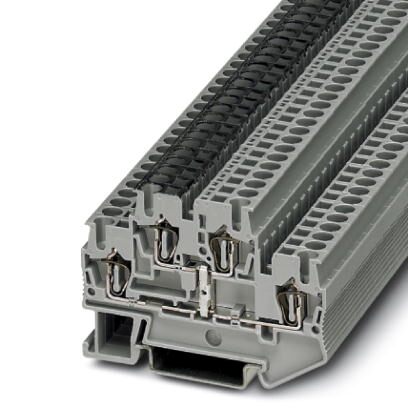

Phoenix Contact 3031539 Double-level Terminal Block
This double-level terminal block features a compact design, equipped with an equipotential bonding line and spring-cage connection technology for reliable wiring. It supports wire cross-sections from 0.08 mm² to 4 mm² (AWG 28 to AWG 12), ensuring compatibility with various wiring needs. The terminal block's width is 5.2 mm, and it is mounted using NS 35/7.5 or NS 35/15 mounting bases. Tested for railway applications, it provides secure and space-efficient connectivity for industrial automation and control systems.
Phoenix Contact 3031539 Double-level Terminal Block Specifications:
- Wire Cross-Section: 0.08 mm² to 4 mm² (AWG 28 to AWG 12)
- Connection type: Spring-cage connection
- Mounting: NS 35/7.5, NS 35/15
- Width: 5.2 mm
- Color: Gray
- Maximum load current: 22 A (with 4 mm² conductor cross section), 26 A maximum load
- Power frequency withstand voltage: 1.89 kV
- Mechanical stability: Conductor test passed (5 x conductor connection)
- Nominal voltage: 300 V (UL/CSA), 500 V (VDE)
- Certifications: CSA, UL Recognized, VDE, IECEx, ATEX, EAC, cULus Recognized
- Approval standards: UL, CSA, VDE, IECEx, EAC, cULus
Buy the Phoenix Contact Series STTB Double-Level Terminal Block: 3031539
Purchase the Phoenix Contact Double-level Terminal Block online today and secure reliable connections for industrial control systems. Its space-saving, compact design, supported by spring-cage technology, ensures quick and safe wiring. Designed with compatibility for wire cross-sections from 0.08 mm² to 4 mm² (AWG 28 to AWG 12), it is suitable for various automation applications. Certified for safety with approvals from CSA, UL, and VDE, this terminal block guarantees high performance and compliance standards, making it the ideal choice for professionals seeking quality and efficiency.
Order your Phoenix Contact Series STTB 2,5-PV terminal block today and ensure secure, space-saving wiring for your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3031539?
You can click on the BUY or RFQ button to purchase 3031539 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3031539?
You can download the 3031539 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3031539?
Phoenix Contact
