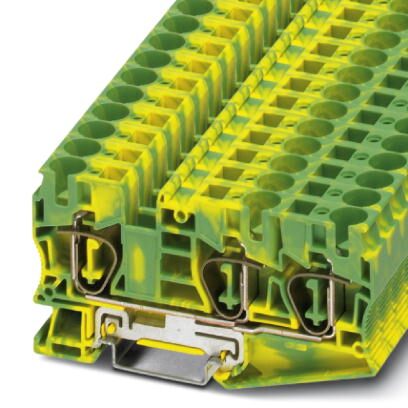

Phoenix Contact 3035302 Spring-Cage Terminal Block
The PHOENIX CONTACT ST 10-TWIN-PE is a versatile spring-cage terminal block ideal for connecting wires in electrical panels and control systems. Its spring-cage connection mechanism simplifies installation and ensures secure terminations. Designed for use with NS 35/7.5 and NS 35/15 mounting rails, this terminal block accommodates a wide range of conductor sizes, from 0.2 mm² to 16 mm², and AWG 24 to 6. With a nominal current of 57 A and a rated surge voltage of 8 kV, it provides reliable performance in demanding industrial environments. The green-yellow color coding enhances safety and organization within electrical systems. It is WEEE/RoHS compliant, demonstrating a commitment to environmental responsibility.
Phoenix Contact 3035302 Spring-Cage Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 3
- Color: green-yellow
- Insulating material: PA
- Inflammability class acc. to UL 94: V0
- Width: 10.2 mm
- Length: 97 mm
- Height NS 35/7,5: 49.6 mm
- Height NS 35/15: 58 mm
- Maximum load current: 65 A (with 16 mm² conductor cross section)
- Rated surge voltage: 8 kV
- Pollution degree: 3
- Surge voltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-2
- Nominal current IN: 57 A
- Open side panel: ja
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 16 mm²
- Conductor cross section stranded min.: 0.2 mm²
- Conductor cross section stranded max.: 10 mm²
- Conductor cross section AWG/kcmil min.: 24
- Conductor cross section AWG/kcmil max: 6
- Conductor cross section stranded, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section stranded, with ferrule without plastic sleeve max.: 10 mm²
- Conductor cross section stranded, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section stranded, with ferrule with plastic sleeve max.: 10 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- Type of connection: Spring-cage connection
- Certification: CUL, UL, VDE-PZI
- CUL AWG/kcmil: 16-6
- UL AWG/kcmil: 16-6
