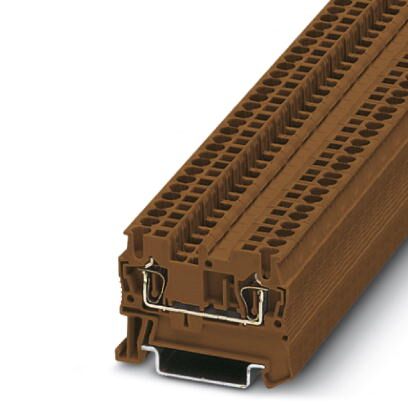

Phoenix Contact 3035360 Feed-through Terminal Block
The PHOENIX CONTACT ST 2,5 BN feed-through terminal block is a versatile solution for connecting wires in electrical panels and control systems. Featuring a spring-cage connection, it simplifies installation and ensures secure connections for conductors ranging from 0.08 to 4 mm² (AWG 28-12). This terminal block is suitable for applications requiring a nominal current of 24A and a nominal voltage of 800V, making it ideal for power distribution, automation, and control circuits. Its compact design and compatibility with NS 35/7.5 and NS 35/15 mounting rails allow for efficient space utilization in industrial environments. The terminal block's robust construction and compliance with international standards ensure reliable performance and long-term durability.
Phoenix Contact 3035360 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: brown
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Designation: Level 1 above 1 below 1
- Maximum load current: 31 A (with 4 mm² conductor cross section)
- Nominal current IN: 24 A (at 2.5 mm²)
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4046356115582
- Weight per Piece (excluding packing): 6.000 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Stripping length: 8 mm ... 10 mm
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.08 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.08 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Min. AWG conductor cross section, flexible: 28
- Max. AWG conductor cross section, flexible: 14
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 0.5 mm²
- Connection in acc. with standard (2): IEC/EN 60079-7
- Internal cylindrical gage: A3
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.1: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- ETIM 6.0: EC000897
- ETIM 7.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
