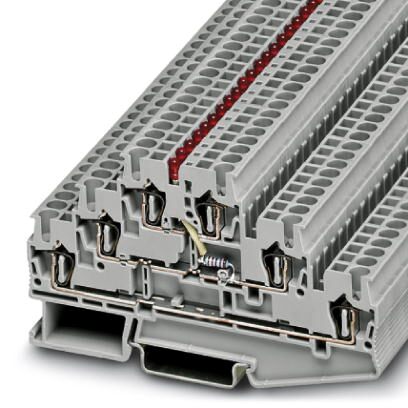

Phoenix Contact 3035580 Multi-Level Terminal Block
The PHOENIX CONTACT ST 2,5-3L-LA 24RD/O-M multi-level terminal block offers a space-saving solution for complex wiring applications. Its three-level design allows for increased connection density in a compact footprint, making it ideal for control cabinets and distribution panels. The spring-cage connection ensures quick and secure termination of conductors, while the robust construction and high-quality materials guarantee reliable performance in demanding industrial environments. This terminal block is commonly used in automation systems, power distribution, and other applications requiring organized and efficient wiring.
Phoenix Contact 3035580 Multi-Level Terminal Block Specifications:
- Base Part No: ST 2,5-3L-LA 24RD/O-M
- Number of levels: 3
- Number of connections: 6
- Potentials: 3
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- LED voltage range: 12 V AC/DC ... 30 V AC/DC
- LED current range: 0.31 mA ... 0.95 mA
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Maximum load current: 28 A
- Nominal current IN: 20 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 99.5 mm
- Height NS 35/7,5: 58 mm
- Height NS 35/15: 65.5 mm
- Connection method: Spring-cage connection
- Stripping length: 8 mm ... 10 mm
- Conductor cross section solid min: 0.08 mm²
- Conductor cross section solid max: 4 mm²
- Conductor cross section AWG min: 28
- Conductor cross section AWG max: 12
- Conductor cross section flexible min: 0.08 mm²
- Conductor cross section flexible max: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max: 0.5 mm²
- Internal cylindrical gage: A3
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
