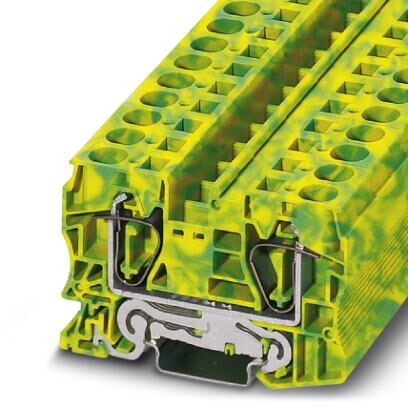

Phoenix Contact 3036165 Grounding Terminal Block
This spring cage ground terminal block ensures reliable grounding with a spring-cage connection method. It supports 2 conductors with cross-sections from 0.2 mm² to 25 mm², compatible with AWG sizes 24 to 4. Its width is 12.2 mm and features a green-yellow color-code indicating ground connection. Suitable for various electrical panels, it mounts easily on NS 35/7.5 or NS 35/15 bases. Designed with UL 746 B insulation resistance and rated for 130°C, this terminal is approved under multiple safety standards including UL, CSA, and IECEx, making it ideal for industrial grounding applications.
Phoenix Contact 3036165 Grounding Terminal Block Specifications:
- Connection method: Spring-cage connection
- Conductor cross section: 0.2 mm² to 25 mm²
- AWG compatibility: 24 to 4
- Width: 12.2 mm
- Color: Green-yellow
- Mounting type: NS 35/7.5 and NS 35/15
- Rated insulation material temperature index: 130°C
- Standards Compliance: UL 746 B, CSA, IECEx, ATEX, EAC
- Approvals: UL Recognized, CSA Certified, IECEx, ATEX, EAC Ex
- Weight per piece: 51.7 g
Buy the Phoenix Contact Series Grounding Terminal Block: 3036165
Purchase the Phoenix Contact 3036165 grounding terminal block online today for a dependable grounding solution. Featuring spring-cage connection technology, it supports conductors from 0.2 mm² to 25 mm² and compatible with AWG sizes 24 to 4. It is designed for easy mounting on NS 35/7.5 and NS 35/15 bases, with a width of 12.2 mm and a green-yellow color-code indicating ground connection. Certified under UL, CSA, IECEx, and ATEX standards, this terminal ensures safety and efficiency in industrial grounding applications, providing quick installation and robust performance.
Buy Phoenix Contact 3036165 now and experience reliable grounding and easy installation for industrial electrical panels.
Frequently Asked Questions
Where can I buy Phoenix Contact 3036165?
You can click on the BUY or RFQ button to purchase 3036165 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3036165?
You can download the 3036165 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3036165?
Phoenix Contact
