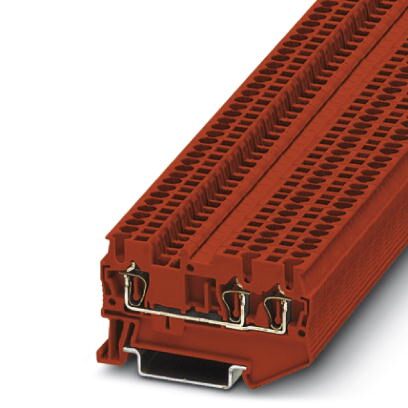

Phoenix Contact 3037274 Feed-through Terminal Block
The PHOENIX CONTACT ST 1,5-TWIN RD (3037274) is a versatile feed-through terminal block ideal for various industrial applications, including power distribution, control systems, and automation. Its spring-cage connection simplifies wiring and reduces installation time. The consistent double function shaft provides flexibility for potential distribution and easy integration of test accessories. The terminal block supports conductors ranging from 0.08 mm² to 1.5 mm² and is designed for space-saving multi-conductor connections without the need for additional bridges. It is suitable for use in a wide range of electrical environments and offers reliable performance with a nominal current of 17.5 A and a nominal voltage of 500 V.
Phoenix Contact 3037274 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 3
- Nominal cross section: 1.5 mm²
- Color: red
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 17.5 A
- Nominal current IN: 17.5 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 6.44 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Width: 4.2 mm
- End cover width: 2.2 mm
- Length: 60.5 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Connection method: Spring-cage connection
- Conductor cross section solid min.: 0.08 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 16
- Conductor cross section flexible min.: 0.08 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Stripping length: 10 mm
- Internal cylindrical gage: A1
- eCl@ss 4.0: 27141121
- eCl@ss 4.1: 27141121
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
