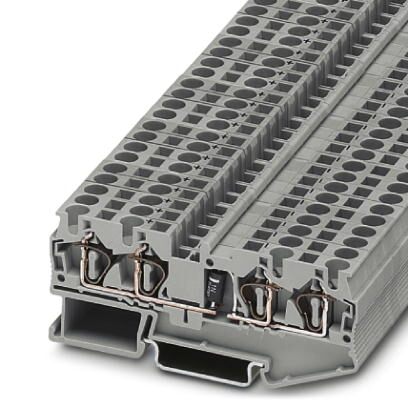

Phoenix Contact 3037782 4 Circuit Terminal Block
The PHOENIX CONTACT ST 4-QUATTRO-DIO 1N 5408/L-R is a versatile component terminal block designed for various industrial applications. It incorporates a 1N 5408 diode, providing integrated protection and functionality. With a nominal voltage of 800V and a nominal current of 1.5A, this terminal block is suitable for power distribution and signal processing in control cabinets and automation systems. The spring-cage connection simplifies wiring and maintenance, while the NS 35/7,5 and NS 35/15 mounting options offer flexibility in installation. Its robust construction and compliance with industry standards ensure reliable performance in demanding environments.
Phoenix Contact 3037782 4 Circuit Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 4
- Potentials: 1
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.02 W
- Maximum load current: 1.5 A
- Nominal current IN: 1.5 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 87 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Connection method: Spring-cage connection
- Stripping length: 8 mm ... 10 mm
- Conductor cross section solid min.: 0.08 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.08 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 28
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Internal cylindrical gage: A4
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
