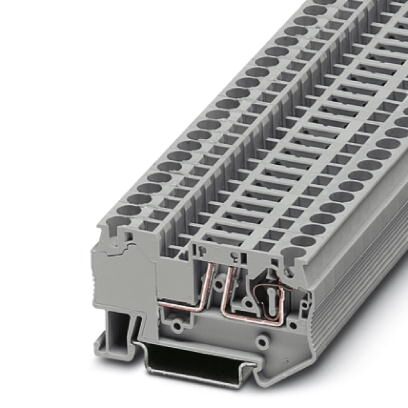

Phoenix Contact 3038367 Disconnect Terminal Block

Phoenix Contact 3038367 Disconnect Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Nominal cross section: 4 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Area of application: Railway industry, Machine building, Plant engineering
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Connection in acc. with standard: IEC 60947-7-1
• Nominal current IN: 20 A (with 6 mm² conductor cross section)
• Maximum load current: 20 A (with 6 mm² conductor cross section)
• Nominal voltage UN: 500 V (voltage is determined by the plug used)
• Open side panel: No
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.08 mm² / 0.1 kg, 4 mm² / 0.9 kg, 6 mm² / 1.4 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 0.08 mm²
• Tractive force setpoint: 5 N
• Conductor cross section tensile test 2: 4 mm²
• Tractive force setpoint 2: 60 N
• Conductor cross section tensile test 3: 6 mm²
• Tractive force setpoint 3: 80 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 1 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 6,4 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 2.5 mm²
• Short-time current: 0.3 kA
• Result of aging test: Test passed
• Ageing test for screwless modular terminal block temperature cycles: 192
• Result of thermal test: Test passed
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie-mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s²)/Hz
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 6.2 mm
• Length: 61.5 mm
• Height NS 35/7,5: 36.5 mm
• Height NS 35/15: 44 mm
• Conductor cross section solid min: 0.08 mm²
• Conductor cross section solid max: 6 mm²
• Conductor cross section flexible min: 0.08 mm²
• Conductor cross section flexible max: 4 mm²
• Conductor cross section AWG min: 28
• Conductor cross section AWG max: 10
• Conductor cross section flexible, with ferrule without plastic sleeve min: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max: 4 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max: 4 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max: 1 mm²
• Connection method: Spring-cage connection
• Stripping length: 8 mm ... 10 mm
• Internal cylindrical gage: A4
