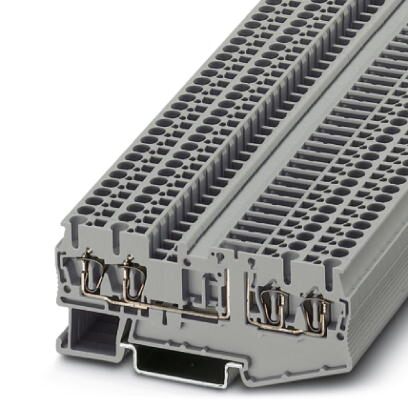

Phoenix Contact 3038451 Disconnect Terminal Block
The PHOENIX CONTACT ST 2,5-QUATTRO-TG disconnect terminal block is a versatile solution for connecting wires in various industrial environments, particularly suited for railway applications due to its robust design and tested reliability. It utilizes a spring-cage connection mechanism for easy and secure termination, accommodating conductor sizes ranging from 0.08 mm² to 4 mm². With a nominal current of 20A and a nominal voltage of 400V, this terminal block is suitable for a wide range of power distribution and control circuits. Its compact dimensions (5.2 mm width, 84 mm length) and compatibility with NS 35 mounting rails make it ideal for space-constrained installations. The terminal block is also designed with safety features like back-of-hand and finger protection, ensuring a safe working environment.
Phoenix Contact 3038451 Disconnect Terminal Block Specifications:
- Base Article Number: 3038451
- Number of Levels: 1
- Number of Connections: 4
- Nominal Cross Section: 2.5 mm²
- Color: gray
- Insulating Material: PA
- Flammability Rating UL 94: V0
- Area of Application: Railway industry, Machine building, Plant engineering
- Rated Surge Voltage: 6 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Connection According to Standard: IEC 60947-7-1
- Nominal Current IN: 20 A
- Maximum Load Current: 20 A
- Nominal Voltage UN: 400 V
- Open Side Panel: Yes
- Shock Protection Test Specification: DIN EN 50274 (VDE 0660-514):2002-11
- Finger Protection: guaranteed
- Result of Surge Voltage Test: Test passed
- Surge Voltage Test Setpoint: 7.3 kV
- Result of Power-Frequency Withstand Voltage Test: Test passed
- Power Frequency Withstand Voltage Setpoint: 1.89 kV
- Result of Mechanical Stability Test: Test passed
- Result of Bending Test: Test passed
- Bending Test Rotation Speed: 10 rpm
- Bending Test Turns: 135
- Bending Test Conductor Cross Section Weight: 0.08 mm² / 0.1 kg, 2.5 mm² / 0.7 kg, 4 mm² / 0.9 kg
- Tensile Test Result: Test passed
- Conductor Cross Section Tensile Test: 0.08 mm²
- Tractive Force Setpoint: 5 N
- Conductor Cross Section Tensile Test 2: 2.5 mm²
- Tractive Force Setpoint 2: 50 N
- Conductor Cross Section Tensile Test 3: 4 mm²
- Tractive Force Setpoint 3: 60 N
- Result of Tight Fit on Support: Test passed
- Tight Fit on Carrier: NS 35
- Setpoint: 1 N
- Result of Voltage-Drop Test: Test passed
- Requirements Voltage Drop: ≤ 6,4 mV
- Result of Temperature-Rise Test: Test passed
- Short Circuit Stability Result: Test passed
- Conductor Cross Section Short Circuit Testing: 2.5 mm²
- Short-Time Current: 0.3 kA
- Result of Aging Test: Test passed
- Ageing Test for Screwless Modular Terminal Block Temperature Cycles: 192
- Result of Thermal Test: Test passed
- Proof of Thermal Characteristics Needle Flame: 30 s
- Oscillation Broadband Noise Test Result: Test passed
- Test Specification Oscillation Broadband Noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test Spectrum: Service life test category 2, bogie mounted
- Test Frequency: f1= 5 Hz to f2= 250 Hz
- ASD Level: 6.12 (m/s² 2/Hz)
- Acceleration: 3.12 g
- Test Duration per Axis: 5 h
- Test Directions: X-, Y- and Z-axis
- Relative Insulation Material Temperature Index (Elec, UL 746 B): 130 °C
- Temperature Index of Insulation Material (DIN EN 60216-1 VDE 0304-21): 125 °C
- Static Insulating Material Application in Cold: -60 °C
- Width: 5.2 mm
- Length: 84 mm
- Height NS 35/7.5: 36.5 mm
- Height NS 35/15: 44 mm
- Conductor Cross Section Solid Min: 0.08 mm²
- Conductor Cross Section Solid Max: 4 mm²
- Conductor Cross Section Flexible Min: 0.08 mm²
- Conductor Cross Section Flexible Max: 2.5 mm²
- Conductor Cross Section AWG Min: 28
- Conductor Cross Section AWG Max: 12
- Conductor Cross Section Flexible with Ferrule Without Plastic Sleeve Min: 0.14 mm²
- Conductor Cross Section Flexible with Ferrule Without Plastic Sleeve Max: 2.5 mm²
- Conductor Cross Section Flexible with Ferrule with Plastic Sleeve Min: 0.14 mm²
- Conductor Cross Section Flexible with Ferrule with Plastic Sleeve Max: 2.5 mm²
- 2 Conductors with Same Cross Section Stranded TWIN Ferrules with Plastic Sleeve Max: 0.5 mm²
