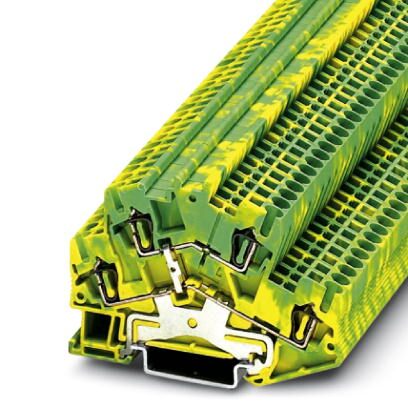

Phoenix Contact 3038480 Protective Conductor Terminal Block
The PHOENIX CONTACT STTBS 2,5-PE protective conductor double-level terminal block provides a robust and space-saving solution for grounding applications in electrical panels and machinery. Its double-level design allows for efficient use of space, while the spring-cage connection ensures quick and easy installation and maintenance. The terminal block is designed to accommodate conductors ranging from 0.08 mm² to 4 mm² (AWG 28-12) and is suitable for use in a variety of industrial environments where reliable grounding is critical. It meets stringent safety standards and offers excellent insulation properties, contributing to overall system safety and performance.
Phoenix Contact 3038480 Protective Conductor Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: green-yellow
- Mounting type: NS 35/7,5, NS 35/15
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Pollution degree: 3
- Overvoltage category: III
- Insulating material group: I
- Connection type: Spring-cage connection
- Width: 5.2 mm
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Back of the hand protection: guaranteed
- Finger protection: guaranteed
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 2, bogie mounted
- Test frequency: f1= 5 Hz to f2= 250 Hz
- ASD level: 6.12 (m/s² 2/Hz)
- Acceleration: 3.12 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock duration: 18 ms
- Number of shocks per direction: 3
- Relative insulation material temperature index (Elec.; UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Conductor cross section solid min.: 0.08 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.08 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 12
- Minimum stripping length: 8 mm
- Maximum stripping length: 10 mm
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 17.556 g
- Custom tariff number: 85369010
- Country of origin: Germany
