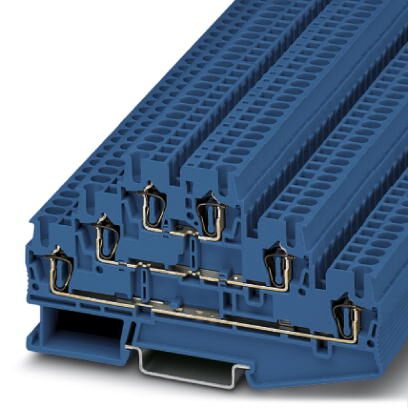

Phoenix Contact 3038710 Multi-Level Terminal Block

Phoenix Contact 3038710 Multi-Level Terminal Block Specifications:

• Number of levels: 3
• Number of connections: 6
• Potentials: 3
• Nominal cross section: 2.5 mm²
• Color: blue
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.77 W
• Designation: Level 1+2+3 above 1 below 1
• Maximum load current: 28 A
• Nominal current IN: 20 A
• Nominal voltage UN: 500 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.08 mm² / 0.1 kg, 2.5 mm² / 0.7 kg, 4 mm² / 0.9 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 0.08 mm²
• Tractive force setpoint: 5 N
• Conductor cross section tensile test 2.5 mm²: 50 N
• Conductor cross section tensile test 4 mm²: 60 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 1 N
• Result of voltage-drop test: Test passed
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 2.5 mm²
• Short-time current: 0.3 kA
• Conductor cross section short circuit testing 4 mm²: 0.48 kA
• Result of thermal test: Test passed
• Ageing test for screwless modular terminal block temperature cycles: 192
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Result of aging test: Test passed
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 5.2 mm
• End cover width: 2.2 mm
• Length: 99.5 mm
• Height NS 35/7,5: 58 mm
• Height NS 35/15: 65.5 mm
• Connection method: Spring-cage connection
• Stripping length: 8 mm ... 10 mm
• Connection in acc. with standard: IEC 60947-7-1
• Conductor cross section solid min.: 0.08 mm²
• Conductor cross section solid max.: 4 mm²
• Conductor cross section AWG min.: 28
• Conductor cross section AWG max.: 12
• Conductor cross section flexible min.: 0.08 mm²
• Conductor cross section flexible max.: 2.5 mm²
• Min. AWG conductor cross section, flexible: 28
• Max. AWG conductor cross section, flexible: 14
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 0.5 mm²
• Internal cylindrical gage: A3
