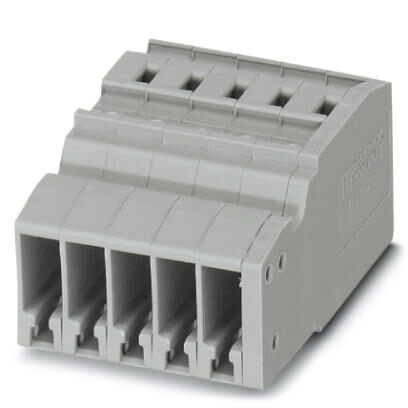

Phoenix Contact 3042285 Electrical Receptacle
This COMBI electrical receptacle is designed for reliable electrical connections, rated for a nominal voltage of 500 V and a current of 24 A. It features a plug connection method with five positions, accommodating conductor cross sections from 0.08 mm² to 4 mm² (AWG 28 to 12). The receptacle's dimensions are approximately 26 mm wide and 18.8 mm high, with a gray color for easy identification. It is tested and approved for railway and industrial applications, ensuring durability, safety, and compliance with standards. Its strain relief and robust construction make it suitable for various demanding electrical environments.
Phoenix Contact 3042285 Electrical Receptacle Specifications:
- Rated Voltage: 500 V
- Current Rating: 24 A
- Number of Positions: 5
- Connection Method: Plug connection
- Conductor Cross Section: 0.08 mm² to 4 mm² (AWG 28 to 12)
- Dimensions: Width 26 mm, Height 18.8 mm
- Color: Gray
- Standards: UL Recognized, cUL Recognized, LR, GL, BV, RS, EAC
- Materials: Insulation and contact materials compliant with safety standards
- Temperature Range: Suitable for typical industrial environments
- Application: Suitable for railway, industrial, automation, and general electrical applications
Buy the Buy Phoenix Contact COMBI receptacle Part Number 3042285 Online
Purchase the Phoenix Contact COMBI receptacle online today to ensure secure, efficient electrical connections. Designed for industrial and railway environments, it features five positions, a robust plug connection, and supports conductor sizes from 0.08 to 4 mm². With UL and cUL recognition, it guarantees safety and compliance. Its compact dimensions of 26 mm width and 18.8 mm height make it ideal for tight spaces. Order now for reliable, long-lasting performance in demanding electrical setups, backed by quality and certification standards.
Get Phoenix Contact 3042285 today—built for reliable connections in industrial and railway applications with high durability and safety standards.
Frequently Asked Questions
Where can I buy Phoenix Contact 3042285?
You can click on the BUY or RFQ button to purchase 3042285 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3042285?
You can download the 3042285 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3042285?
Phoenix Contact
