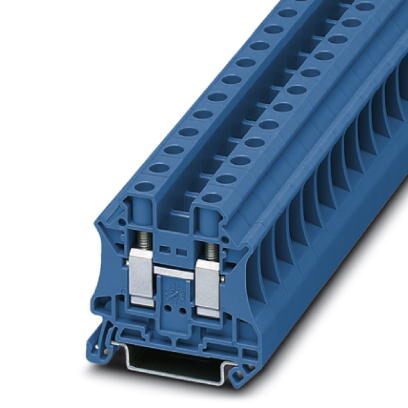

Phoenix Contact 3044188 Feed-through terminal block
This is a feed-through terminal block rated for a maximum voltage of 1000 V and a nominal current of 57 A. It features screw-type connections, supporting two connections with wire cross sections ranging from 0.5 mm² to 16 mm² (AWG 20 to 6). The terminal block has a width of 10.2 mm, a height of 46.9 mm, and is colored blue. It is designed for mounting on NS 35/7.5 and NS 35/15 DIN rail systems.
Phoenix Contact 3044188 Feed-through terminal block Specifications:
- Nominal Voltage: 1000 V
- Nominal Current: 57 A
- Connection Method: Screw connection
- Number of Connections: 2
- Wire Cross Section: 0.5 mm² - 16 mm²
- Wire AWG: 20 - 6
- Width: 10.2 mm
- Height: 46.9 mm
- Color: Blue
- Mounting Types: NS 35/7.5, NS 35/15
Buy the Buy Phoenix Contact Feed-through Terminal Block Part Number 3044188 Online
Purchase the Phoenix Contact feed-through terminal block online to enjoy quick delivery, reliable connection performance, and versatile mounting options for your electrical projects. Designed for maximum voltage of 1000 V and current of 57 A, it supports a broad wire range from 0.5 mm² to 16 mm² (AWG 20 to 6). Featuring screw connections and a compact blue design, it's ideal for DIN rail mounting on NS 35/7.5 and NS 35/15 profiles, simplifying installation in control cabinets and industrial automation setups.
Order your Phoenix Contact SeriesUT 10 BU 3044188 today and ensure reliable wiring with high current capacity and versatile DIN rail mounting options.
Frequently Asked Questions
Where can I buy Phoenix Contact 3044188?
You can click on the BUY or RFQ button to purchase 3044188 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3044188?
You can download the 3044188 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3044188?
Phoenix Contact
