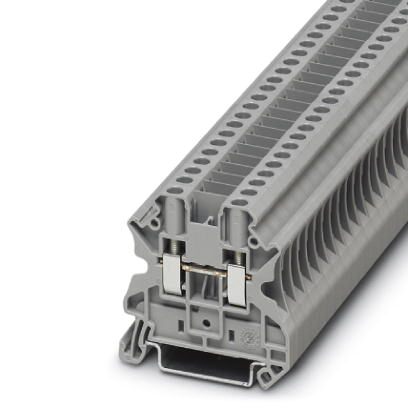

Phoenix Contact 3044623 Feed-through Terminal Block
The PHOENIX CONTACT UT 4-CB feed-through terminal block is a versatile solution for electrical distribution and connection in various industrial applications. Designed for mounting on NS 35/7.5 and NS 35/15 rails, this terminal block offers a secure and reliable connection for wires. It accommodates conductor cross-sections ranging from 0.14 mm² to 6 mm² (AWG 26-10) and is rated for a nominal current of 32A and a nominal voltage of 1000V. The screw connection ensures a tight and durable connection, while the breakout partition plate in the bridge shaft allows for easy bridge installation. Its robust construction and compliance with standards like IEC 60947-7-1 make it suitable for demanding environments.
Phoenix Contact 3044623 Feed-through Terminal Block Specifications:
- Nominal Voltage: 1000 V
- Nominal Current: 32 A
- Connection Method: Screw connection
- Number of Connections: 2
- Number of Positions: 1
- Cross Section: 0.14 mm² - 6 mm²
- AWG: 26 - 10
- Width: 6.2 mm
- Color: gray
- Mounting Type: NS 35/7,5, NS 35/15
- Insulating Material: PA
- Flammability Rating: V0
- Rated Surge Voltage: 8 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Power Dissipation: 1.02 W
- Maximum Load Current: 41 A (with 6 mm² conductor cross section)
- Nominal Current IN: 32 A (with 4 mm² conductor cross section)
- Open Side Panel: Yes
- Shock Protection Test: IEC 60529:2001-02
- Back of Hand Protection: guaranteed
- Finger Protection: guaranteed
- Surge Voltage Test Setpoint: 9.8 kV
- Power Frequency Withstand Voltage Setpoint: 2.2 kV
- Bending Test Rotation Speed: 10 rpm
- Bending Test Turns: 135
- Tractive Force Setpoint (0.14 mm² conductor): 10 N
- Tractive Force Setpoint (4 mm² conductor): 60 N
- Tractive Force Setpoint (6 mm² conductor): 80 N
- Tightening Torque (min): 0.6 Nm
- Tightening Torque (max): 0.8 Nm
- Custom Tariff Number: 85369010
- Country of Origin: Poland
- Packing Unit: 1 pc
- Minimum Order Quantity: 50 pc
