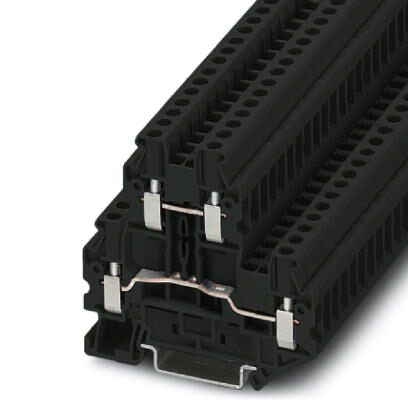

Phoenix Contact 3044637 Double Level Terminal Block
The PHOENIX CONTACT UTTB 2,5 BK double-level terminal block provides a compact and versatile solution for connecting multiple circuits in a single space. Its two function shafts per level enable quick implementation of potential distribution tasks, while the large-surface labeling area ensures clear identification of each terminal point. The terminal block is designed for screw connections, accepting conductors ranging from 0.14 mm² to 4 mm² (AWG 26-12). It is suitable for a wide range of industrial applications, including power distribution, control systems, and automation equipment. The robust construction and compliance with standards like IEC 60947-7-1 ensure reliable performance and safety.
Phoenix Contact 3044637 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 24 A
- Maximum load current: 28 A
- Nominal voltage UN: 500 V
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Stripping length: 9 mm
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
Buy the 3044637 PHOENIX CONTACT Double Level Terminal Block | myMectronic
Purchase the PHOENIX CONTACT 3044637 Double Level Terminal Block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3044637?
You can click on the BUY or RFQ button to purchase 3044637 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3044637?
You can download the 3044637 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3044637?
Phoenix Contact
