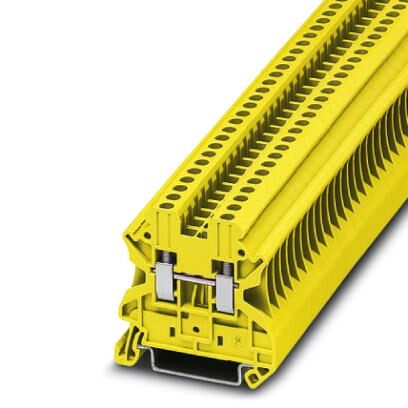

Phoenix Contact 3045059 Feed-through Terminal Block
This is a Phoenix Contact feed-through terminal block designed for secure electrical connections. It features a 2.5 mm² wire capacity, operates at 20A current and 600V voltage rating. The terminal is a single-level type with screw connections, suitable for wire sizes from #26 to #12 AWG. It is colored yellow for easy identification.
Phoenix Contact 3045059 Feed-through Terminal Block Specifications:
- Wire capacity: 2.5 mm²
- Current rating: 20 A
- Voltage rating: 600 V
- Connection method: Screw connection
- Number of connections: 2
- Width: 5.2 mm
- Color: Yellow
- Mounting type: NS 35/7
- Insulating material: PA
- Flammability rating according to UL 94 vo
- Conductor cross section: Min. 0.14 mm² (solid), Max. 4 mm² (solid/flexible)
- Conductor AWG: Min. 26, Max. 12
- Dimensions: Length 47.7 mm, height varies with mount
- Standards: IEC 60947-7-1, UL 94
Buy the Phoenix Contact 3045059 – Reliable Feed-through Terminal for Industrial Applications
Secure your industrial electrical connections with the Phoenix Contact feed-through terminal block. Designed for 20A and 600V systems, it features screw connection technology and a compact 5.2 mm width. Suitable for wire sizes from AWG 26 to 12 and with a capacity of 2.5 mm², this yellow terminal is ideal for automation and control panels, machine building, and railway applications. Its robust insulation and compliance with international standards ensure safety, reliability, and easy installation for professional electrical setups.
Get Phoenix Contact 3045059 today—built for precision and long-lasting durability in industrial electrical connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 3045059?
You can click on the BUY or RFQ button to purchase 3045059 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3045059?
You can download the 3045059 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3045059?
Phoenix Contact
