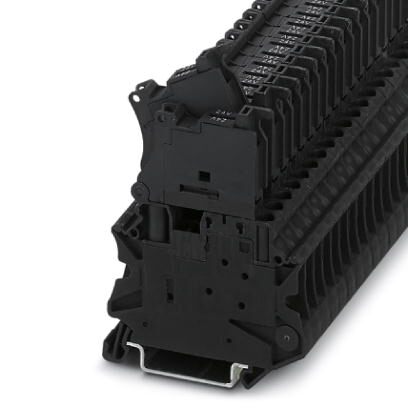

Phoenix Contact 3046540 Fuse Modular Terminal Block

Phoenix Contact 3046540 Fuse Modular Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Nominal cross section: 4 mm²
• Color: black
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Maximum power dissipation for nominal condition: 1.6 W
• Fuse: G / 5 x 20
• Fuse type: Glass / ceramics / ...
• Rated surge voltage: 4 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation: max. 1.6 W (with single arrangement)
• Maximum power dissipation_interconnected: max. 1.6 W (With interconnected arrangement)
• Maximum power dissipation_short_circuit_single: max. 4 W (with single arrangement)
• Maximum power dissipation_short_circuit_interconnected: max. 2.5 W (With interconnected arrangement)
• Maximum current with single arrangement: 6.3 A
• LED voltage range: 12 V AC/DC ... 30 V AC/DC
• Current LED: 6.3 A
• LED current range: 0.31 mA ... 0.95 mA
• Switching capacity (UL 1077): 6.3 A
• Connection in acc. with standard: IEC 60947-7-3
• Maximum load current: 6.3 A
• Nominal current IN: 6.3 A
• Nominal voltage UN: 24 V
• Open side panel: No
• Number of positions: 1
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1): 125 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 6.2 mm
• Length: 57.8 mm
• Height NS 35/7,5: 73 mm
• Height NS 35/15: 80.5 mm
• Conductor cross section solid min.: 0.14 mm²
• Conductor cross section solid max.: 6 mm²
• Conductor cross section flexible min.: 0.14 mm²
• Conductor cross section flexible max.: 6 mm²
• Conductor cross section AWG min.: 26
• Conductor cross section AWG max.: 10
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
• 2 conductors with same cross section, solid min.: 0.14 mm²
• 2 conductors with same cross section, solid max.: 1.5 mm²
• 2 conductors with same cross section, stranded min.: 0.14 mm²
• 2 conductors with same cross section, stranded max.: 1.5 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.14 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 2.5 mm²
• Connection method: Screw connection
• Stripping length: 9 mm
• Internal cylindrical gage: A4
• Screw thread: M3
• Tightening torque, min: 0.6 Nm
• Tightening torque max: 0.8 Nm
