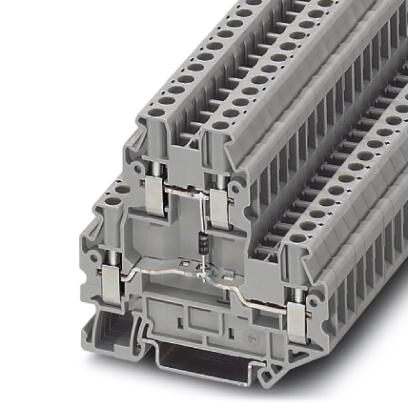

Phoenix Contact 3046663 Terminal Block, UTTB 2.5-DIO/U-O

Phoenix Contact 3046663 Terminal Block, UTTB 2.5-DIO/U-O Specifications:

• Packing unit: 1 STK
• GTIN: 4017918997199
• Weight per Piece (excluding packing): 16.700 g
• Custom tariff number: 85369010
• Country of origin: Poland
• Number of levels: 2
• Number of connections: 4
• Nominal cross section: 2.5 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Nominal current IN: 24 A
• Maximum load current: 28 A (with 4 mm² conductor cross section)
• Nominal voltage UN: 500 V
• Open side panel: Yes
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 5.2 mm
• Length: 69.9 mm
• Height NS 35/7,5: 65 mm
• Height NS 35/15: 72.5 mm
• Conductor cross section solid min.: 0.14 mm²
• Conductor cross section solid max.: 4 mm²
• Conductor cross section flexible min.: 0.14 mm²
• Conductor cross section flexible max.: 4 mm²
• Conductor cross section AWG min.: 26
• Conductor cross section AWG max.: 12
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
• 2 conductors with same cross section, solid min.: 0.14 mm²
• 2 conductors with same cross section, solid max.: 1.5 mm²
• 2 conductors with same cross section, stranded min.: 0.14 mm²
• 2 conductors with same cross section, stranded max.: 1.5 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.14 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1.5 mm²
• Connection method: Screw connection
• Stripping length: 9 mm
• Internal cylindrical gage: A3
• Screw thread: M3
• Tightening torque, min: 0.5 Nm
• Tightening torque max: 0.6 Nm
• Connection in acc. with standard: CSA
• China RoHS: Environmentally Friendly Use Period = 50
