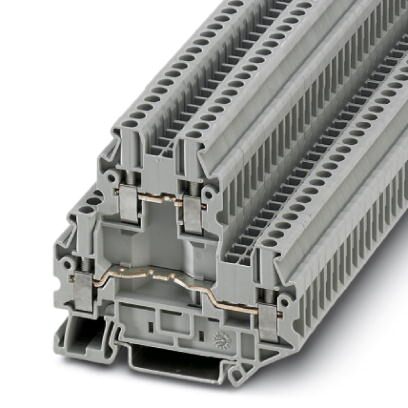

Phoenix Contact 3046744 Double Level Terminal Block
The PHOENIX CONTACT UTTB 2,5-BE double-level terminal block provides a versatile solution for connecting and organizing multiple components in industrial applications. Its compact design (5.2 mm width) saves space, while the screw connection ensures reliable and secure connections. Suitable for a wide range of conductor sizes (0.14 mm² - 4 mm²) and compatible with NS 35/7.5 and NS 35/15 mounting rails, this terminal block is ideal for control cabinets, automation systems, and power distribution panels. The V0 flammability rating ensures safety and compliance with industry standards.
Phoenix Contact 3046744 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Nominal current IN: 24 A
- Maximum load current: 28 A (with 4 mm² conductor cross section)
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Width: 5.2 mm
- Length: 69.9 mm
- Height NS 35/7,5: 65 mm
- Height NS 35/15: 72.5 mm
- Connection method: Screw connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1.5 mm²
- Stripping length: 9 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Custom tariff number: 85369010
- Country of origin: Poland
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 16.41 g
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141118
- eCl@ss 6.0: 27141141
- eCl@ss 7.0: 27141141
- eCl@ss 8.0: 27141127
- ETIM 2.0: EC000901
- ETIM 3.0: EC000901
- ETIM 4.0: EC000901
- ETIM 5.0: EC000903
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
