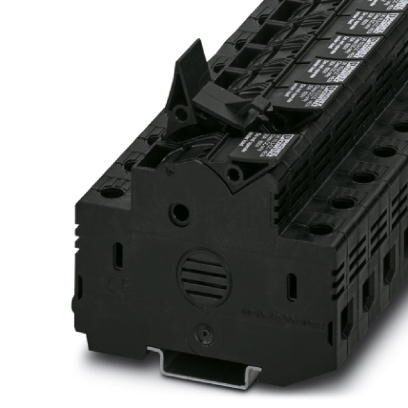

Phoenix Contact 3048603 Fuse Terminal Block
This is a modular fuse terminal block designed for fuse protection. It accommodates fuse types such as glass or ceramic fuses and features a screw connection method. The terminal supports a cross-sectional wire range from 1.5 mm² to 25 mm² (AWG 16 to 4) and is rated for a nominal current of 32 A at a voltage of 690 V. It has a width of 54 mm, is suitable for mounting on NS 35/7.5 or NS 35/15 DIN rails, and comes in black color. The fuse type is Class CC.
Phoenix Contact 3048603 Fuse Terminal Block Specifications:
- Connection method: Screw connection
- Cross section: 1.5 mm² - 25 mm² (AWG 16 - 4)
- Fuse type: Class CC, Glass or Ceramic
- Nominal current: 32 A
- Nominal voltage: 690 V
- Width: 54 mm
- Mounting: NS 35/7.5, NS 35/15
- Color: Black
- Standards: CSA, UL, cUL, EAC
- Approvals: CSA / UL Listed / cCUL Listed / EAC / cULus Listed
- Rated voltage: 600 V
- Classification: eCl@ss 27141116, UNSPSC 39121410
Buy the Phoenix Contact 3048603 – Reliable Fuse Protection for Industrial Applications
Purchase the fuse terminal block online today to ensure reliable fuse protection for industrial wiring systems. This modular device supports a wide range of wire sizes, ensuring flexibility in your electrical installations. Its sturdy screw connection and compliance with standards like CSA and UL guarantee safety and performance. Suitable for DIN rails, it features a compact 54 mm width, supporting a maximum voltage of 690 V and rated current of 32 A. Perfect for maintenance and new installations, order now for quick delivery.
Buy Phoenix Contact 3048603 now and experience unmatched reliability and performance with premium fuse terminal protection.
