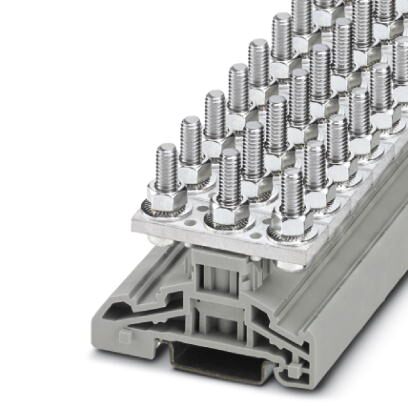

Phoenix Contact 3049547 High Current Connector
The Phoenix Contact HV M6/2 connector (part number 3049547) is a high-current terminal block designed for demanding industrial applications. It provides a secure bolt connection for conductors up to 35 mm², ensuring reliable power transmission. The connector's robust construction and features like spring washers and a feed-through window for mounting connection rails contribute to ease of use and efficient wiring. It is ideal for applications requiring high current carrying capacity and secure connections, such as power distribution systems, motor control centers, and renewable energy installations. The connector's compliance with standards like IEC 60947-7-1 and its comprehensive testing regime (mechanical stability, voltage drop, thermal characteristics) guarantee its performance and safety.
Phoenix Contact 3049547 High Current Connector Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 35 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 125 A
- Maximum load current: 125 A
- Nominal voltage UN: 1000 V
- Open side panel: No
- Result of surge voltage test: Test passed
- Surge voltage test setpoint: 9.8 kV
- Result of power-frequency withstand voltage test: Test passed
- Power frequency withstand voltage setpoint: 2.2 kV
- Result of the test for mechanical stability of terminal points: Test passed
- Result of tight fit on support: Test passed
- Tight fit on carrier: NS 35
- Setpoint: 10 N
- Result of voltage-drop test: Test passed
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Conductor cross section short circuit testing: 35 mm²
- Short-time current: 4.2 kA
- Result of thermal test: Test passed
- Proof of thermal characteristics needle flame effective duration: 10 s
- Oscillation broadband noise test result: Test passed
- Test specification oscillation broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 1, class B, body mounted
- Test frequency: f1= 5 Hz to f2= 150 Hz
- ASD level: 0.02 g²/Hz
- Acceleration: 0.8g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock acceleration: 5 g
- Shock duration: 30 ms
- Number of shocks per direction: 3
- Relative insulation material temperature index Elec UL 746 B: 130 °C
- Temperature index of insulation material DIN EN 60216-1 VDE 0304-21: 120 °C
- Length: 67 mm
- Width: 16 mm
- Height: 55.5 mm
- Height NS 35/7,5: 58 mm
- Height NS 35/15: 65.5 mm
- Bolt length: 16.00 mm
- Conductor cross section solid min: 2.5 mm²
- Conductor cross section solid max: 35 mm²
- Conductor cross section flexible min: 2.5 mm²
- Conductor cross section flexible max: 35 mm²
- Conductor cross section AWG min: 14
- Conductor cross section AWG max: 2
- Screw thread: M6
- Tightening torque min: 3 Nm
- Tightening torque max: 6 Nm
- Connection method: Bolt connection
- Connection in acc. with standard DIN 46 234: None
- Min cross section: 6 mm²
- Max cross section: 35 mm²
- Bolt diameter: 6 mm
- Connection in acc. with standard DIN 46,235: None
- Packing unit: 1 pc
- Minimum order quantity: 25 pc
- Weight per Piece excluding packing: 67.94 g
- Custom tariff number: 85369010
- Country of origin: Germany
