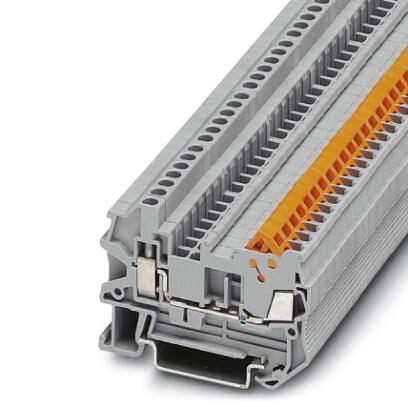

Phoenix Contact 3050015 Feed-through Terminal Block
The Phoenix Contact QTCU 1,5 feed-through terminal block offers a hybrid connection solution, utilizing a quick connection on one side and a screw connection on the other. This design caters to diverse wiring needs in industrial environments. The terminal block is suitable for applications requiring reliable and efficient connections, such as control cabinets, power distribution, and automation systems. Its compact size and NS 35 mounting capability make it ideal for space-constrained installations. The terminal block supports conductor cross-sections ranging from 0.25 to 1.5 mm², ensuring compatibility with a wide range of wiring configurations. It is designed to meet stringent safety standards and provides robust performance in demanding industrial conditions.
Phoenix Contact 3050015 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 1.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Ambient temperature (actuation): -10 °C ... 90 °C
- Connection method: Quick connection, Screw connection
- Mounting: NS 35/7,5, NS 35/15
- Packing unit: 1 STK
- Minimum order quantity: 50 STK
- Weight per Piece (excluding packing): 9.200 g
- Custom tariff number: 85369010
- Country of origin: China
- Width: 5.2 mm
- Length: 58.8 mm
- Height NS 35/7,5: 42.8 mm
- Height NS 35/15: 50.3 mm
- End cover width: 2.2 mm
- Max. wire diameter incl. insulation: 3 mm
- Conductor cross section solid min.: 0.25 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 16
- Conductor cross section flexible min.: 0.25 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Stripping length: 9 mm
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
