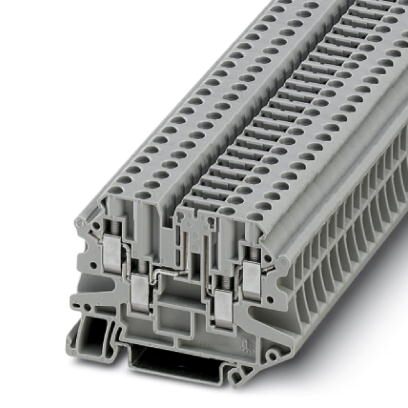

Phoenix Contact 3064027 Disconnect Terminal Block
The PHOENIX CONTACT UT 4-QUATTRO-TG disconnect terminal block provides a secure and reliable connection solution for industrial applications. Designed with four connection points, it accommodates a wide range of wire gauges, from 0.14 mm² to 6 mm² (26-10 AWG). The block is rated for a nominal current of 20A and a nominal voltage of 500V, ensuring safe operation in demanding environments. Its disconnect feature allows for easy maintenance and troubleshooting. The terminal block is compatible with NS 35/7.5 and NS 35/15 mounting rails, simplifying installation and integration into existing systems. Constructed from durable PA material and featuring a V0 flammability rating, this terminal block offers both performance and safety.
Phoenix Contact 3064027 Disconnect Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 4
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Pollution degree: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 20 A (with 6 mm² conductor cross section)
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 18.4 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Nominal current IN: 20 A
- Nominal voltage UN: 500 V
- Open side panel: ja
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 65.4 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Connection method: Screw connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 6 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- Stripping length: 9 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- eCl@ss 4.0: 27141199
- eCl@ss 4.1: 27141199
- eCl@ss 5.0: 27141145
- eCl@ss 5.1: 27141145
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141126
- ETIM 2.0: EC000886
- ETIM 3.0: EC000886
- ETIM 4.0: EC000897
- ETIM 5.0: EC000902
- UNSPSC 6.01: 30211827
- UNSPSC 7.0901: 39121424
- UNSPSC 11: 39121424
- UNSPSC 12.01: 39121424
- UNSPSC 13.2: 39121424
