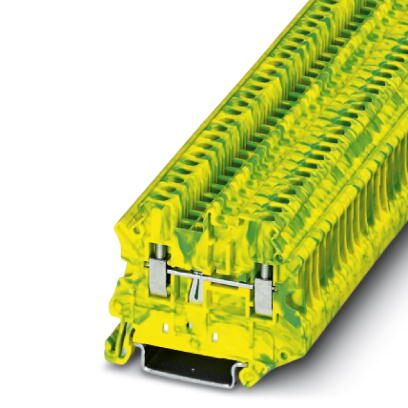

Phoenix Contact 3064124 Feed-through Terminal Block
The PHOENIX CONTACT UT 2,5-MTD-PE feed-through terminal block provides a robust and reliable connection solution for various industrial applications. Designed for use with NS 35/7.5 and NS 35/15 mounting rails, this terminal block facilitates efficient and organized wiring in control cabinets and distribution panels. The screw connection ensures a secure and durable connection for conductors ranging from 0.14 mm² to 4 mm² (AWG 26-12), making it suitable for a wide range of electrical circuits. Its PE (protective earth) designation and green-yellow color coding enhance safety and simplify identification in complex wiring systems. The terminal block's compact design and ease of use contribute to streamlined installation and maintenance processes.
Phoenix Contact 3064124 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: green-yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Open side panel: Yes
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 1, class B, body mounted
- Test frequency: f1= 5 Hz to f2= 150 Hz
- ASD level: 0.02 g²/Hz
- Acceleration: 0,8 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock acceleration: 5 g
- Shock duration: 30 ms
- Number of shocks per direction: 3
- Test directions (shock): X-, Y- and Z-axis (pos. and neg.)
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 120 °C
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Connection method: Screw connection
- Connection in acc. with standard: IEC 60947-7-2
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- Stripping length: 9 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141118
- eCl@ss 6.0: 27141141
- eCl@ss 7.0: 27141141
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000901
- ETIM 3.0: EC000901
- ETIM 4.0: EC000901
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
