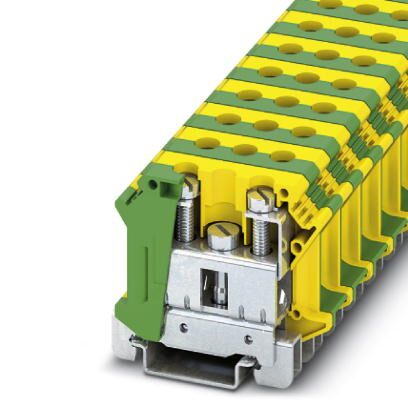

Phoenix Contact 3074091 Installation Ground Terminal Block
The PHOENIX CONTACT UTI 35-PE installation ground terminal block is designed for reliable grounding in electrical distribution systems. Its low-profile design makes it ideal for use in flat installation distributors, optimizing space utilization. The terminal block features a screw connection, accommodating conductors from 0.75 mm² to 35 mm² (AWG 18-2), and is compatible with NS 35/7.5 and NS 35/15 mounting rails. The asymmetrical arrangement of terminal blocks on the DIN rail allows for efficient routing of the neutral busbar. This terminal block is crucial for ensuring safety and proper grounding in industrial and commercial electrical installations.
Phoenix Contact 3074091 Installation Ground Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 2
- Nominal cross section: 35 mm²
- Color: green-yellow
- Insulating material: PA
- Flammability rating according to UL 94: V2
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Designation: Level 1 above 1 below 1
- Nominal current IN: 125 A
- Nominal voltage UN: 800 V
- Open side panel: No
- Terminal block mounting: 2.5 Nm ... 3 Nm (PE foot with mounting screw, M5)
- Width: 15 mm
- Length: 55 mm
- Height NS 35/7,5: 51 mm
- Height NS 35/15: 58.5 mm
- Connection method: Screw connection
- Screw thread: M6
- Stripping length: 16 mm
- Tightening torque, min: 3.2 Nm
- Tightening torque max: 3.7 Nm
- Connection in acc. with standard: IEC 60947-7-2
- Conductor cross section solid min.: 0.75 mm²
- Conductor cross section solid max.: 35 mm²
- Conductor cross section AWG min.: 18
- Conductor cross section AWG max.: 2
- Conductor cross section flexible min.: 0.75 mm²
- Conductor cross section flexible max.: 35 mm²
- Min. AWG conductor cross section, flexible: 18
- Max. AWG conductor cross section, flexible: 2
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.75 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 35 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.75 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 35 mm²
- 2 conductors with same cross section, solid min.: 0.75 mm²
- 2 conductors with same cross section, solid max.: 10 mm²
- 2 conductors with same cross section, stranded min.: 0.75 mm²
- 2 conductors with same cross section, stranded max.: 10 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.75 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 6 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.75 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 10 mm²
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.1: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141125
- eCl@ss 8.0: 27141125
- eCl@ss 9.0: 27141125
- ETIM 3.0: EC000897
- ETIM 4.0: EC000901
- ETIM 5.0: EC000901
- ETIM 6.0: EC001329
- ETIM 7.0: EC001329
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
