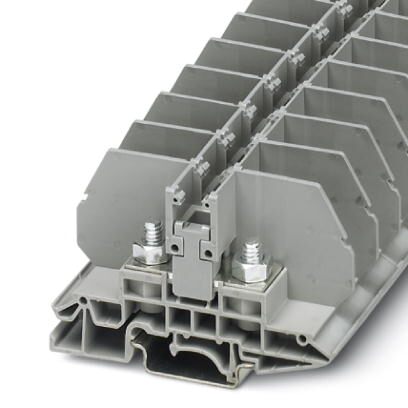

Phoenix Contact 3075896 Bolt Connection Terminal Block
The Phoenix Contact RBO 6 bolt connection terminal block provides a robust and reliable connection solution for various industrial applications. Its compact design allows for efficient space utilization, while the bolt connection ensures a secure and durable connection. The ability to mount on standard DIN rails or directly in control boxes offers flexibility in installation. The integrated isolator bridge bar enables switchable cross connections, simplifying wiring and maintenance. This terminal block is ideal for applications requiring high current carrying capacity and reliable performance in demanding environments.
Phoenix Contact 3075896 Bolt Connection Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 35 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum load current: 125 A
- Nominal current IN: 125 A
- Nominal voltage UN: 800 V
- Open side panel: No
- Result of surge voltage test: Test passed
- Surge voltage test setpoint: 9.8 kV
- Result of power-frequency withstand voltage test: Test passed
- Power frequency withstand voltage setpoint: 2 kV
- Result of the test for mechanical stability of terminal points: Test passed
- Result of tight fit on support: Test passed
- Tight fit on carrier: NS 32/NS 35
- Setpoint: 10 N
- Result of voltage-drop test: Test passed
- Requirements, voltage drop: ≤ 3.2 mV
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Conductor cross section short circuit testing: 35 mm²
- Short-time current: 4.2 kA
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 1, class B, body mounted
- Test frequency: f1= 5 Hz to f2= 150 Hz
- ASD level: 1.857 m/s² 2/Hz
- Acceleration: 5 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock duration: 30 ms
- Number of shocks per direction: 3
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Width: 17 mm
- End cover width: 2.2 mm
- Length: 80.8 mm
- Height NS 35/7,5: 49.8 mm
- Height NS 35/15: 57.3 mm
- Height NS 32: 54.8 mm
- Pitch: 17.00 mm
- Connection method: Bolt connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 2.5 mm²
- Conductor cross section solid max.: 35 mm²
- Conductor cross section AWG min.: 12
- Conductor cross section AWG max.: 2
- Conductor cross section flexible min.: 2.5 mm²
- Conductor cross section flexible max.: 35 mm²
- Cable lug connection according to standard: DIN 46237
- Min. cross section for cable lug connection: 2.5 mm²
- Max. cross section for cable lug connection: 6 mm²
- Hole diameter, min.: 6.5 mm
- Cable lug width, max.: 15 mm
- Bolt diameter: 6 mm
- Screw thread: M6
- Tightening torque, min: 3.2 Nm
- Tightening torque max: 3.7 Nm
- Packing unit: 1 pc
- Minimum order quantity: 40 pc
- Weight per Piece (excluding packing): 37.5 g
- Custom tariff number: 85369010
- Country of origin: India
