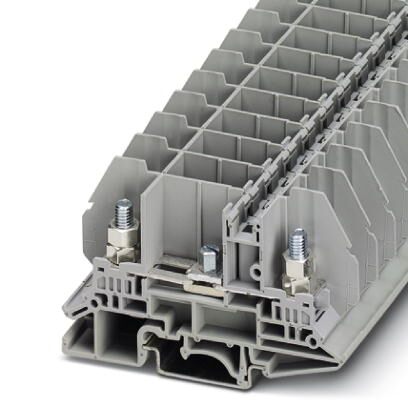

Phoenix Contact 3076714 Test Disconnect Terminal Block

Phoenix Contact 3076714 Test Disconnect Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 10 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 8 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 1.82 W
• Designation: Level 1 above 1 below 1
• Maximum load current: 50 A (with 10 mm² conductor cross section)
• Nominal current IN: 50 A
• Nominal voltage UN: 800 V (with open 630 V disconnect point)
• Open side panel: Yes
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 9.8 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 2 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 32/NS 35
• Setpoint: 5 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 6,4 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 10 mm²
• Short-time current: 1.2 kA
• Result of thermal test: Test passed
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 1, class B, body mounted
• Test frequency: f1= 5 Hz to f2= 150 Hz
• ASD level: 1.857 (m/s²) 2/Hz
• Acceleration: 0,8 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Shock test result: Test passed
• Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
• Shock form: Half-sine
• Acceleration (shock): 5g
• Shock duration: 30 ms
• Number of shocks per direction: 3
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 13 mm
• End cover width: 2.2 mm
• Length: 80.8 mm
• Height NS 35/7,5: 49.8 mm
• Height NS 35/15: 57.3 mm
• Pitch: 13 mm
• Connection bolts: 1 level
• Connection method: Bolt connection
• Screw thread: M5
• Tightening torque, min: 2 Nm
• Tightening torque max: 2.2 Nm
• Connection in acc. with standard: IEC 60947-7-1
• Conductor cross section flexible min.: 0.1 mm²
• Conductor cross section flexible max.: 10 mm²
• Min. AWG conductor cross section, flexible: 26
• Max. AWG conductor cross section, flexible: 8
• Cable lug connection according to standard: DIN 46234
• Min. cross section for cable lug connection: 0.1 mm²
• Max. cross section for cable lug connection: 10 mm²
• Hole diameter, min.: 5.3 mm
• Cable lug width, max.: 10 mm
• Bolt diameter: 5 mm
• Cable lug connection according to standard (alternative): DIN 46237
• Min. cross section for cable lug connection (alternative): 0.5 mm²
• Max. cross section for cable lug connection (alternative): 6 mm²
