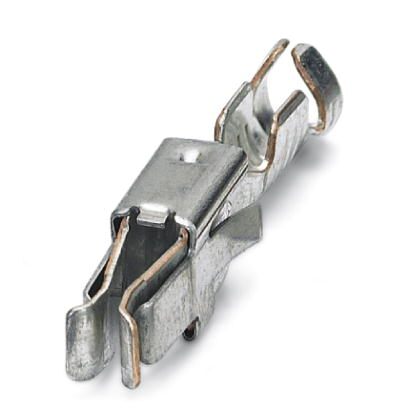

Phoenix Contact 3190564 Female Module Contact
The Phoenix Contact 3190564 female module contact is a crucial component in electrical systems requiring secure and reliable connections. This contact is specifically designed to be inserted into the MSTBC plug housing, providing a robust interface for conductors ranging from 0.5 to 1.0 mm². The contact itself is crafted from tin-plated copper-iron (CuFe), ensuring excellent conductivity and corrosion resistance. This makes it ideal for a wide range of industrial applications, including power distribution, automation, and control systems, where dependable connections are paramount. Its compact design and ease of integration contribute to efficient assembly and maintenance processes.
Phoenix Contact 3190564 Female Module Contact Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- Weight per Piece (excluding packing): 0.428 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Nominal current: 12 A (with 1 mm² conductor cross section)
- Conductor cross section flexible min.: 0.5 mm²
- Max. conductor cross section, flexible: 1 mm²
- Core diameter including insulation: 1.4 mm ... 2.3 mm
- Stripping length of individual wires: 3.5 mm
- Contact material: CuFe
- Contact surface material: Tin-plated
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440204
- eCl@ss 9.0: 27440204
- ETIM 3.0: EC001121
- ETIM 4.0: EC001121
- ETIM 5.0: EC000796
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
- EAC: Approvals submitted
Buy the 3190564 PHOENIX CONTACT Female Module Contact | myMectronic
Purchase the Phoenix Contact 3190564 Female Module Contact securely online for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3190564?
You can click on the BUY or RFQ button to purchase 3190564 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3190564?
You can download the 3190564 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3190564?
Phoenix Contact
