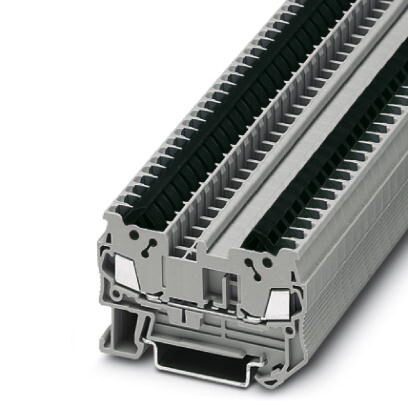

Phoenix Contact 3205021 Fast Connection Terminal Block
The Phoenix Contact QTC 1,5 L BK fast connection terminal block offers a reliable and time-saving solution for electrical connections. Its quick connection mechanism simplifies the wiring process, reducing installation time and labor costs. With a nominal voltage of 800V and a nominal current of 17.5A, this terminal block is suitable for a wide range of applications in industrial automation, power distribution, and control systems. The compact design and gray color ensure seamless integration into existing electrical panels and enclosures. It is designed for mounting on NS 35/7.5 and NS 35/15 rails, providing flexibility in installation. The terminal block supports conductor cross-sections from 0.25 mm² to 1.5 mm² (AWG 24-16), ensuring compatibility with various wire gauges. Its robust construction and high-quality materials guarantee long-term reliability and performance in demanding environments.
Phoenix Contact 3205021 Fast Connection Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 1.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Ambient temperature (actuation): -10 °C ... 90 °C
- Designation: Level 1 above 1 below 1
- Maximum load current: 17.5 A (with 1.5 mm² conductor cross section)
- Nominal current IN: 17.5 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 58.8 mm
- Height NS 35/7,5: 39.3 mm
- Height NS 35/15: 46.8 mm
- Connection: 1 level
- Connection method: Quick connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.25 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 16
- Conductor cross section flexible min.: 0.25 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 16
- Material wire insulation: PVC / PE
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 Cl.1-5
- Max. wire diameter incl. insulation: 3 mm
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.1: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- ETIM 6.0: EC000897
- ETIM 7.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
