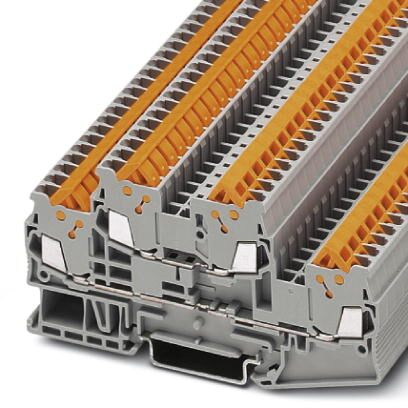

Phoenix Contact 3205116 Double Level Terminal Block
The Phoenix Contact QTTCB 1,5 is a double-level terminal block engineered for reliable connections in demanding industrial environments. Its quick connection mechanism simplifies installation, while the robust construction ensures long-term performance. Suitable for railway applications and other industrial settings like machine building and plant engineering, this terminal block offers a secure and efficient solution for power distribution and signal transmission. It boasts a nominal current of 17.5 A and a nominal voltage of 500 V, making it suitable for a wide range of applications.
Phoenix Contact 3205116 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 1.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Ambient temperature (actuation): -10 °C ... 90 °C
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 17.5 A (with 1.5 mm² conductor cross section)
- Nominal current IN: 17.5 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 16.97 g
- Custom tariff number: 85369010
- Country of origin: China
- Conductor cross section solid min.: 0.25 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 16
- Conductor cross section flexible min.: 0.25 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Material wire insulation: PVC / PE
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 Cl.1-5
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 99.6 mm
- Height NS 35/7,5: 49.9 mm
- Height NS 35/15: 57.4 mm
- CSA B mm²/AWG/kcmil: 24-16
- CSA B Nominal current IN: 10 A
- CSA B Nominal voltage UN: 300 V
- UL Recognized mm²/AWG/kcmil: 24-16
- UL Recognized Nominal current IN: 10 A
- UL Recognized Nominal voltage UN: 300 V
- cUL Recognized mm²/AWG/kcmil: 24-16
- cUL Recognized Nominal current IN: 10 A
- cUL Recognized Nominal voltage UN: 300 V
